Designed by you. Built for you. Your statement. An elevator that will inspire you.

The CG-I
For customers who expect individual and uncompromising quality.

Iconic Design
With the CG–I design, Schmitt + Sohn Aufzüge is introducing a completely new elevator featuring innovative technologies and iconic design. The glass walls of the elevator car, individually designed by the customer, are the focus of attention. The possibilities and choice of exclusive options seem endless.
Whether strong brands, striking graphics, magical landscapes, fascinating portraits, brilliant colours, architecture and much more – each elevator becomes a personal and unmistakeable statement.
Be inspired by the wide range of options for individual elevator design.

Quality
First-class elevator design – clear in form and function and reduced to the bare essentials – inspiring and unique.
The CG–I cars are equipped with high-quality materials, precise details and user-focused information, designed to create an impressive sense of space and a comfort-oriented interior design. Lighting design is presented at its best with innovative LED RGB illuminated ceilings.

Cost efficiency, comfort and safety
This is where the CG–I sets standards. Machine-room-less (MRL), space-saving, low energy and operating costs – a future-proof investment.Combined with excellent service and a comprehensive safety concept, in line with European standards. Type-approved.
Our own qualified development, sales, production, assembly and service employees ensure you receive the highest quality and permanent availability.

Welcome to a new dimension in iconic elevator design.

Configure your CG-I Color Glas® here or find out more about https://www.schmitt-elevators.com/products/passenger-lifts/ passenger elevators from Schmitt + Sohn.

Standard equipment

Accessories - for individual requirements

Product specification

show complete product specifications

The complete product specifications for the CG-I can be found in the product brochure.



Detail
Description
Standard
Accessories

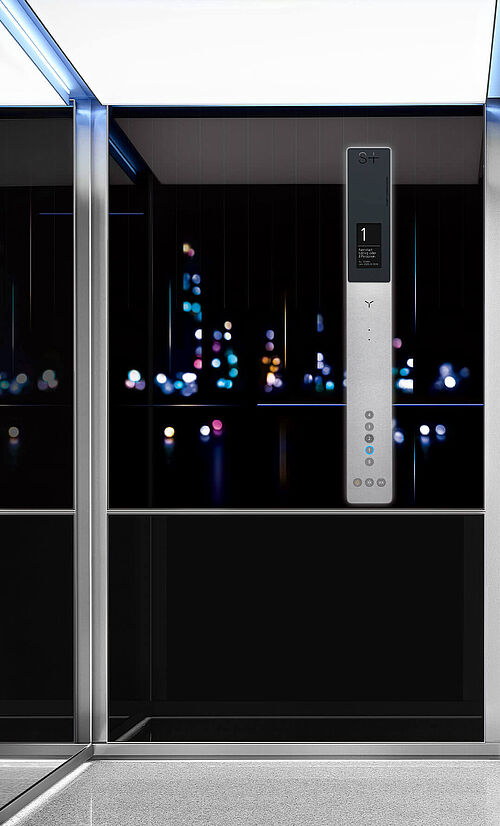

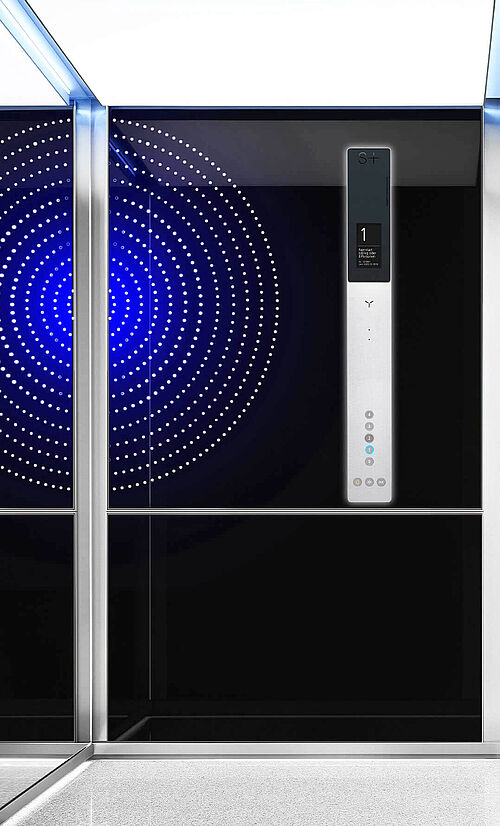

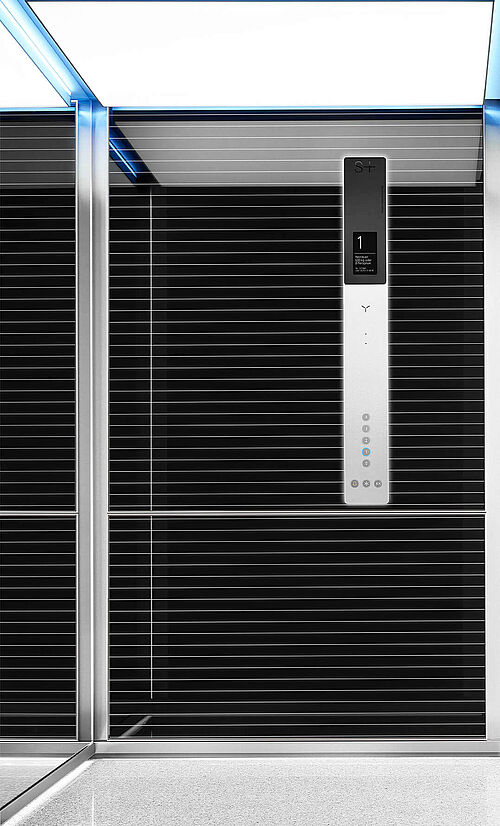

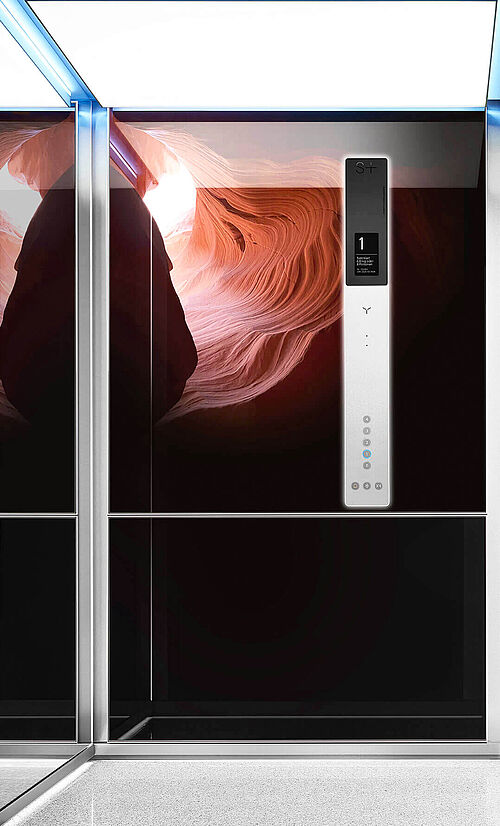

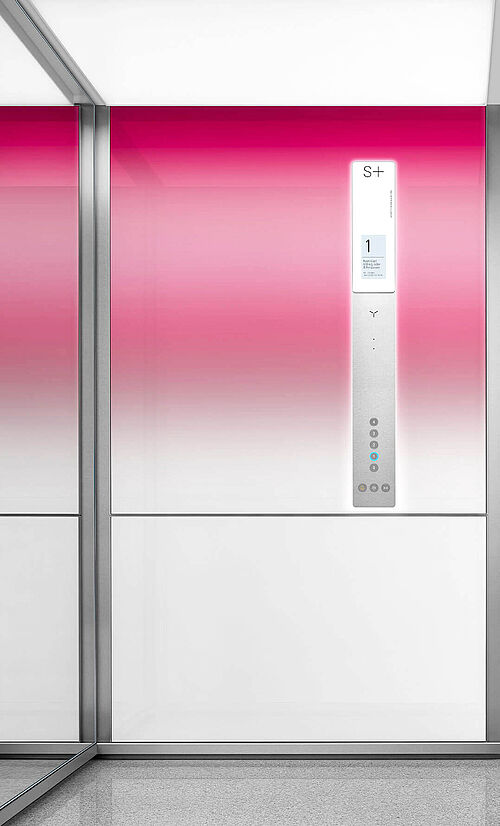

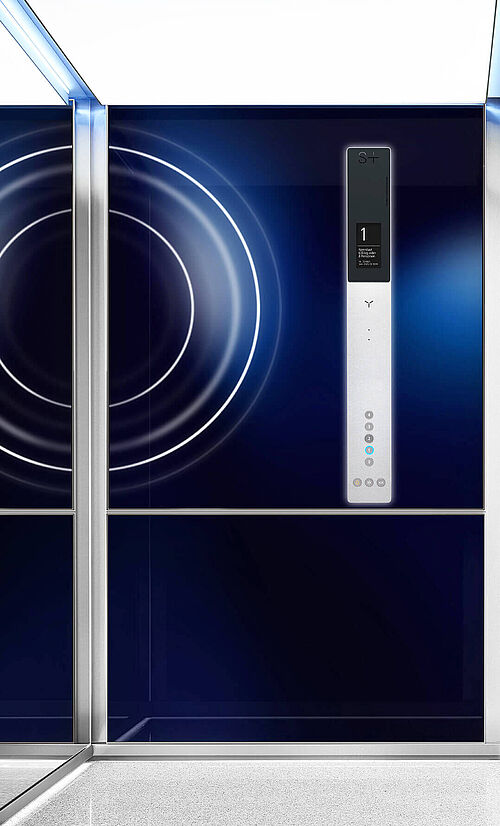

Side walls
CG–I Color Glas®, SSG, coated on the rear side; full coverage. High-quality paint finish and brilliant digital printing. Color Glas® frame, anodised aluminium EV1.
  Standard

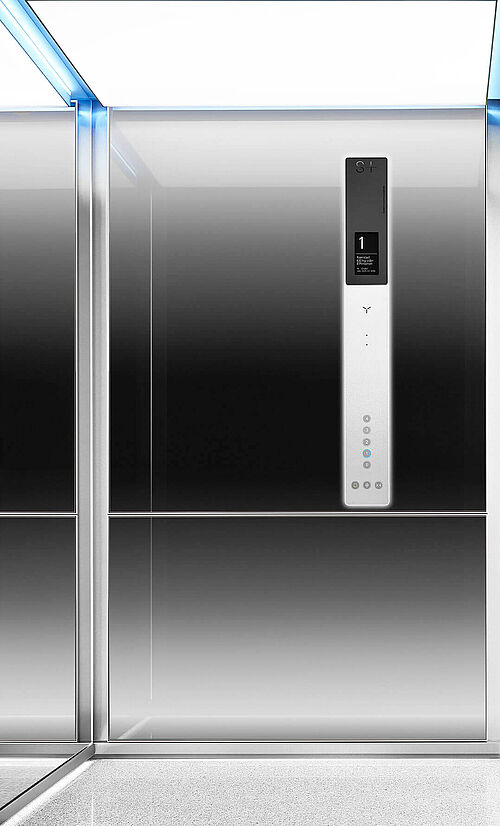

Rear wall mirror
Mirror S6, bright, back of mirror with splinter protection film, rear wall, one-piece, mirror edges ground and polished, mirror frame made of anodised aluminium EV1.
  Standard


Mirror edges, vertical, LED neutral white backlit.

  Accessories
Cab corners
Stainless steel, satin finish.
  Standard

Ceiling
White. Concealed, generously dimensioned cab ventilation at cab depth in both side walls.
  Standard

Lighting
D8 LED illuminated ceiling, direct and glare-free illumination. LED neutral white. Aluminium frame, brilliant white, light surface made of white plastic, semi-transparent.
  Standard

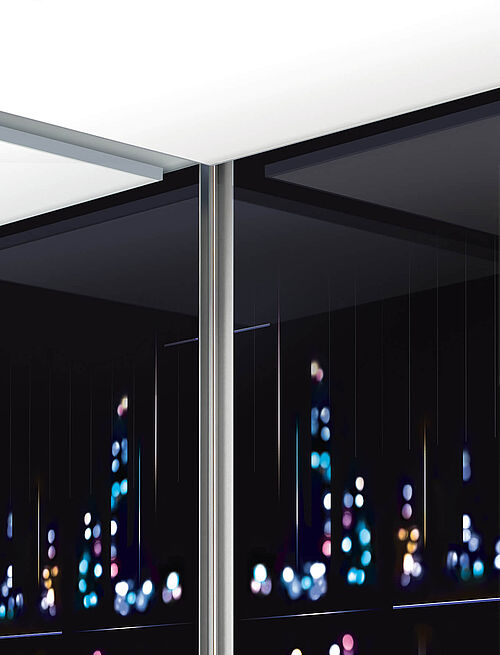

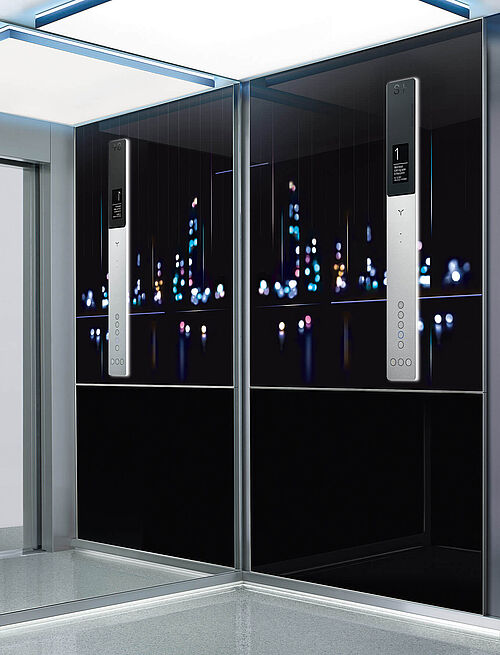

LD8 LED RGB illuminated ceiling. LED RGB with colour and light control.

  Accessories

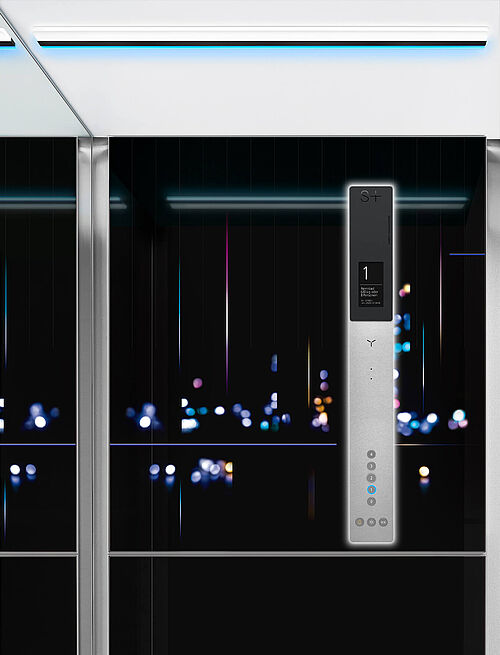

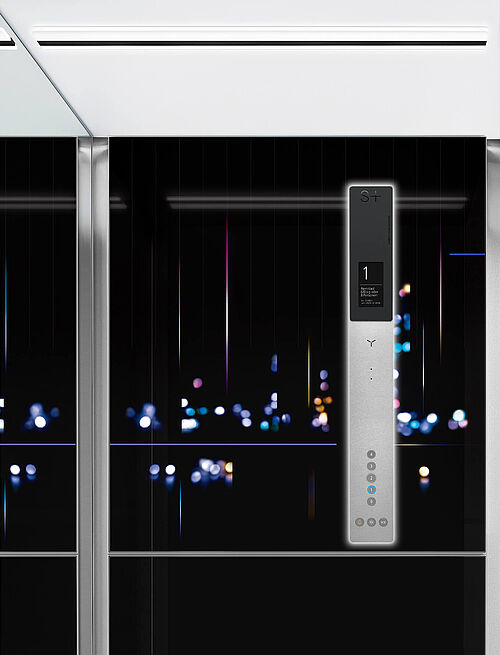

LD7-NEO LED illuminated operating panel, direct and glare-free lighting. LED neutral white. Light surface made of white plastic, semi-transparent.

  Accessories

LD7-NEO LED illuminated operating panel. LED RGB with colour and light control.

  Accessories
Floor
Lowered cab floor for installed floor covering.
  Standard


Granite, light grey

  Accessories

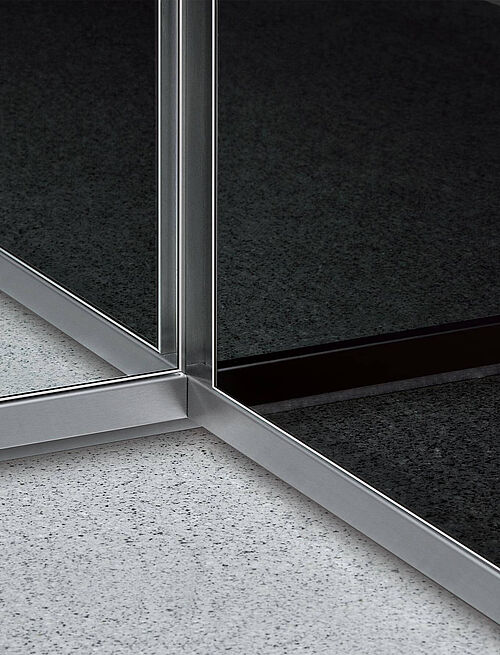

Skirting rails
Stainless steel, satin finish Concealed, generously dimensioned cab ventilation.
  Standard


LED neutral white backlit.

  Accessories
Protection rails
Luggage protection rails, stainless steel, satin finish, 100 x 20 mm.

  Accessories

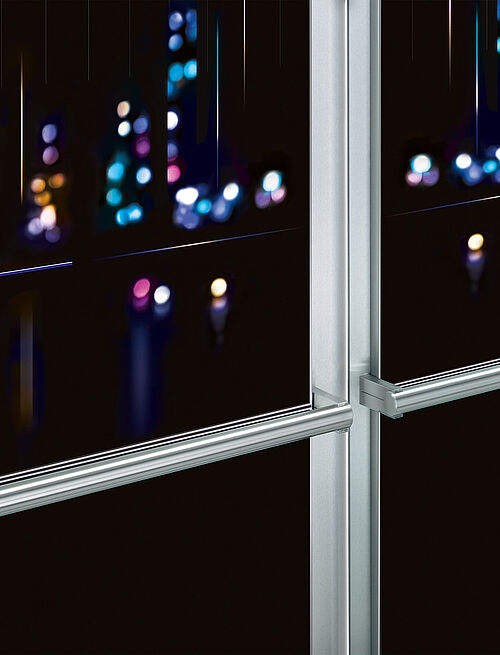

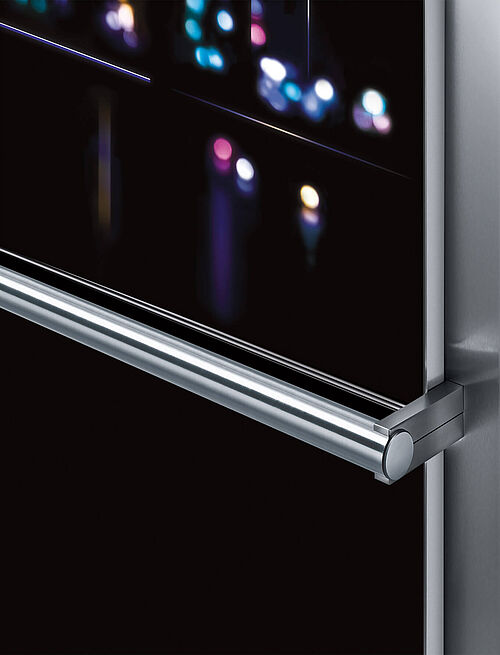

Handrail
Stainless steel, satin finish, suitable for the disabled to DIN EN 81-70, side wall, cab depth, ø 33.7 mm, handrail holder and handrail support stainless steel, solid. Handrail ends: stainless steel, welded.
  Standard


Second handrail opposite, next to operating panel.

  Accessories

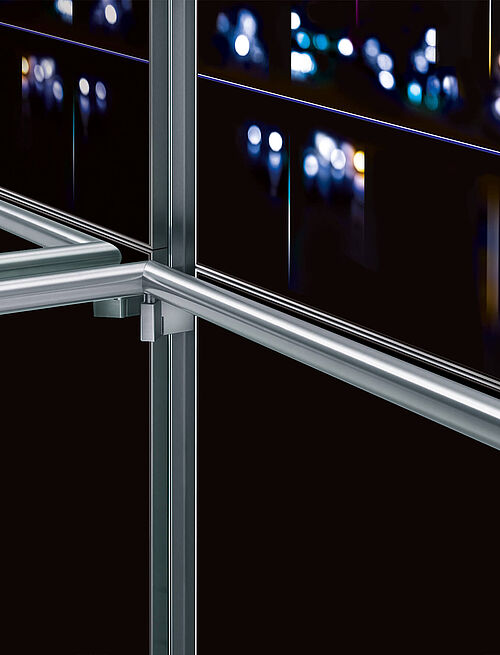

Surrounding handrail, corners mitred and welded.

  Accessories

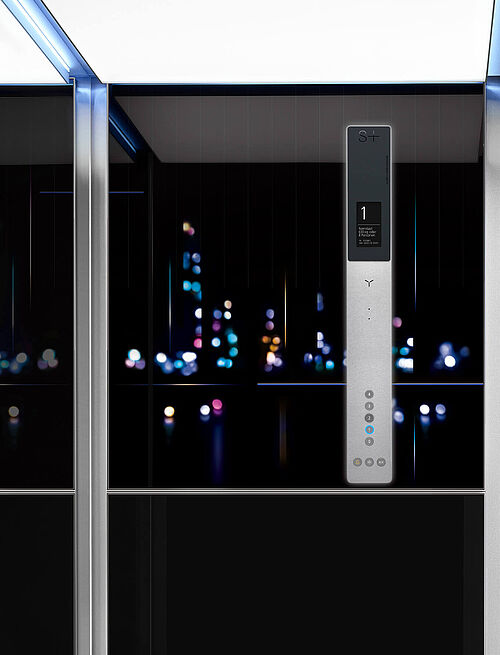

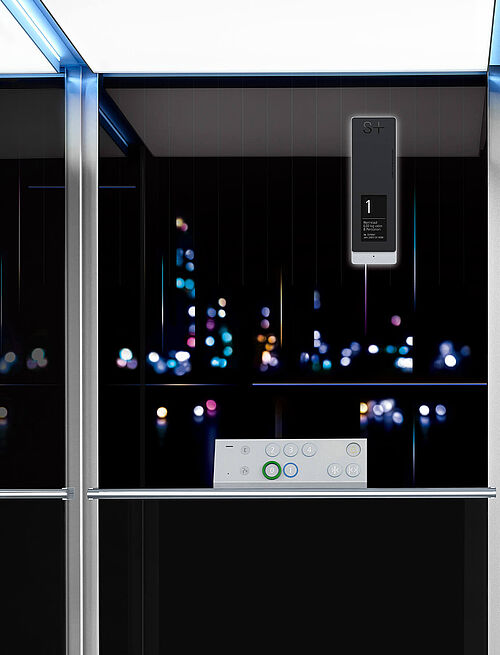

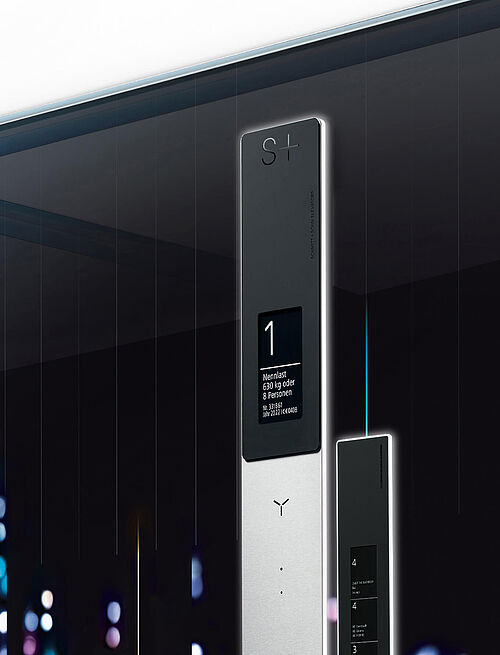

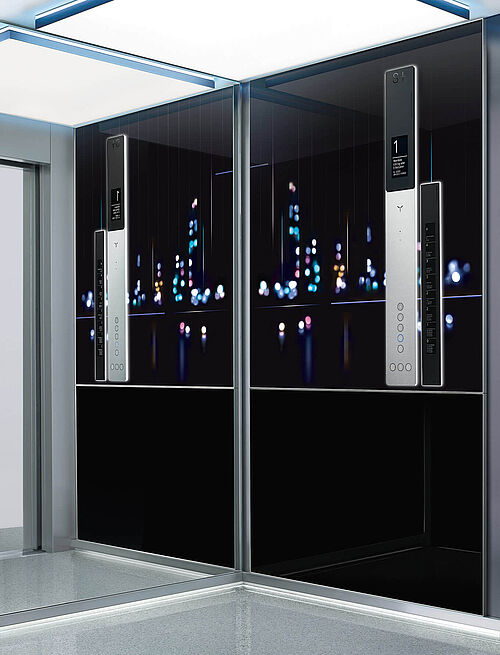

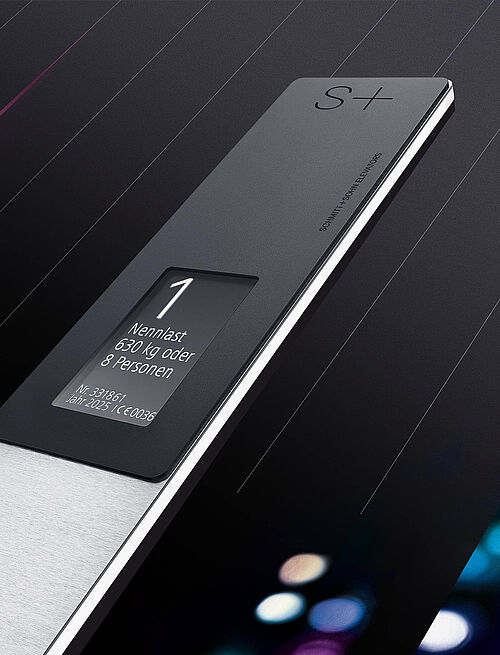

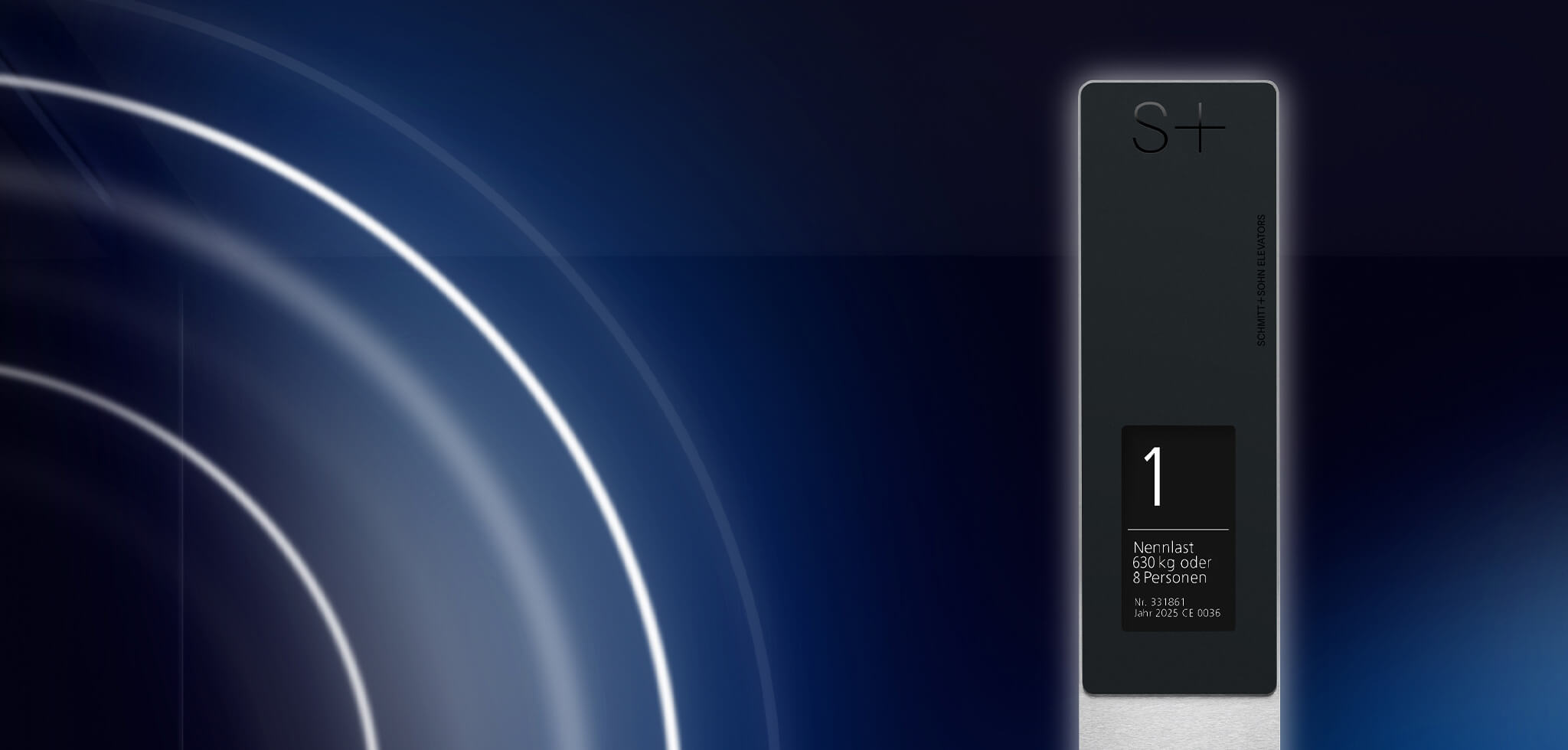

Operating panel, cab

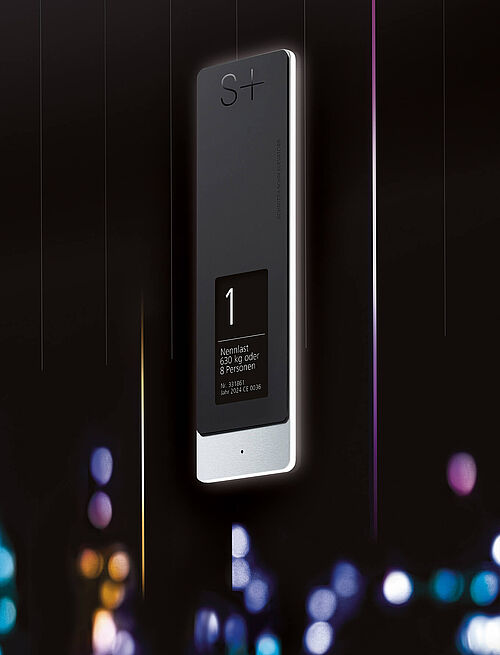

BT-I-TFT-LED, stainless steel, satin finish, horizontal grinding direction, positioned suitable for the disabled to DIN EN 81-70 4), concealed attachment. Information panel acrylic glass, white, high-gloss, acrylic glass logo inlay, deep black, high-gloss, engraved trademark, black, illuminated frame made of white acrylic glass, semi-transparent, satin finished. LED neutral white. Display high-resolution TFT, Short-travel buttons, flush, round, button surface stainless steel, button illumination KED white, call acceptance blue LED, symbols plastic, light grey.
  Standard


BT-I-TFT-LED, stainless steel, satin finish, horizontal grinding direction, positioned suitable for the disabled to DIN EN 81-70 4), concealed attachment. Information panel acrylic glass black, matt, acrylic glass logo inlay, deep black, high-gloss, engraved trademark, illuminated frame made of white acrylic glass, semi-transparent, satin finished, LED neutral white. Display high-resolution TFT, Short-travel buttons, flush, round, button surface stainless steel, button illumination KED white, call acceptance blue LED, symbols plastic, light grey.
  Standard


Stainless steel, satin finish, suitable for the disabled to DIN EN 81-70 4) Annex B, horizontal, concealed attachment. Separate information panel. Large, raised buttons, round, button surface stainless steel, button illumination white LED, call acceptance blue LED, symbols raised, tactile, plastic, light grey.

  Accessories
Name plate panel
Stainless steel, satin finish, horizontal grain, concealed attachment, illuminated frame made of white acrylic glass, semi-transparent, satin finish, information panel made of white acrylic glass, high-gloss, concealed attachment. Logo and text trademark digital print/silkscreen print, nameplates made of white acrylic glass, high-gloss, interchangeable. Digital print

  Accessories

Stainless steel, satin finish, horizontal grain, concealed attachment, illuminated frame made of white acrylic glass, semi-transparent, satin finish, information panel made of black acrylic glass, matte, concealed attachment. Logo and text trademark engraving, nameplates made of white acrylic glass, high-gloss, interchangeable. Digital print

  Accessories
Cab portal
Stainless steel, satin finish.
  Standard

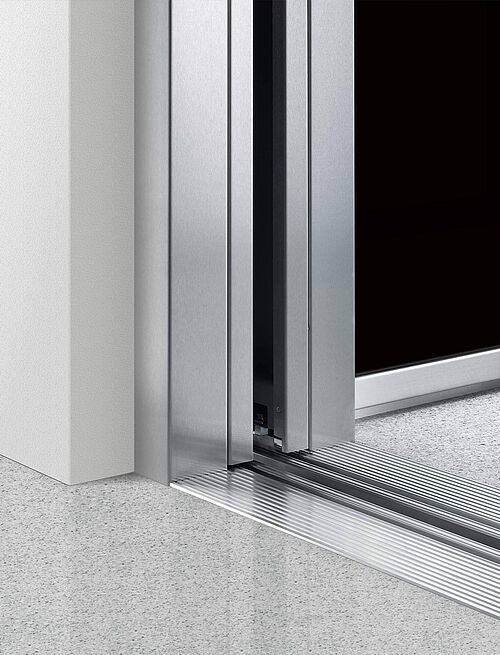

Cab door
Stainless steel, satin finish, two-piece, one-sided opening, door height 2,100 mm.
  Standard


Stainless steel, satin finish, centre-opening, door height 2,100 mm.

  Accessories
Door monitoring
2D safety light grid over full door height.
  Standard


3D safety light grid with vestibule monitoring.

  Accessories

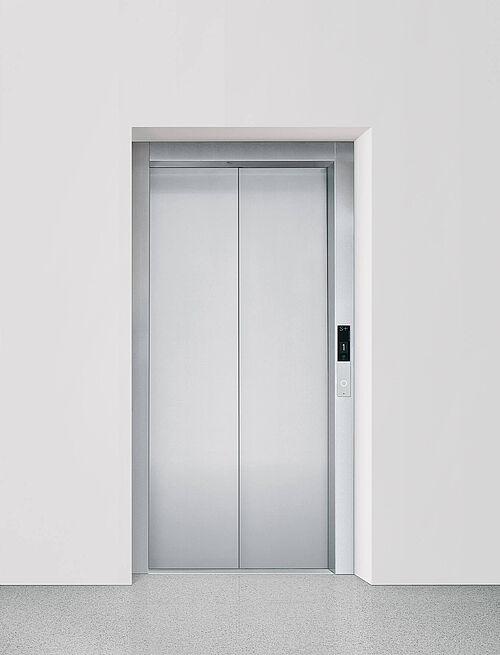

Shaft doors
Primed, two-piece, one-sided opening, height as for cab door.
  Standard


Primed, centre-opening, height as for cab door.

  Accessories

Stainless steel, satin finish, stainless steel, linen.

  Accessories

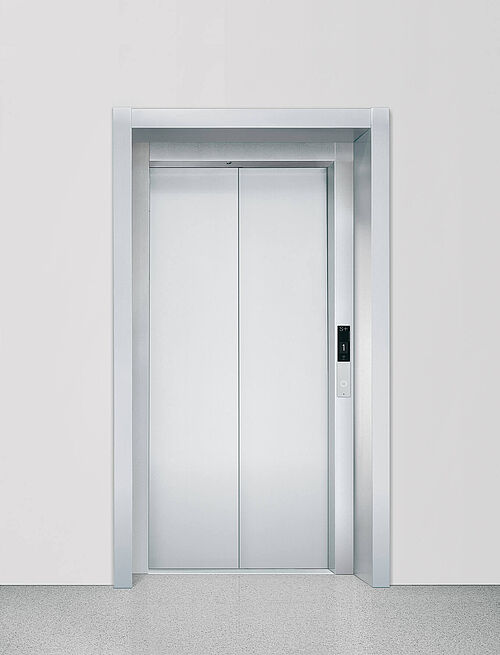

Wall bezel settings M1, primed, stainless steel, satin finish, stainless steel, linen.

  Accessories

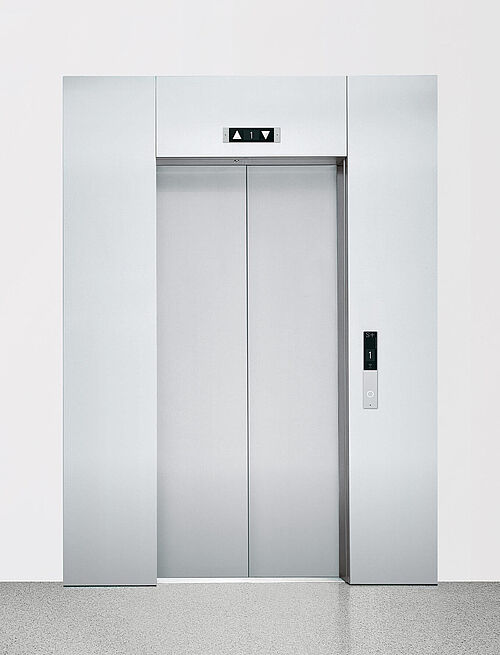

Portals P1, primed, stainless steel, satin finish, stainless steel, linen, Color Glas®.

  Accessories

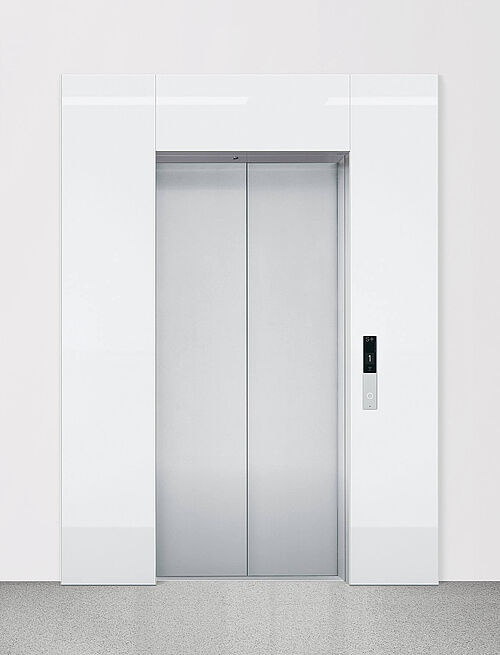

Portals P1, primed, SSG, glass edges cut and polished, glass frame stainless steel, satin finish, Color Glas® brilliant white or brilliant black.

  Accessories

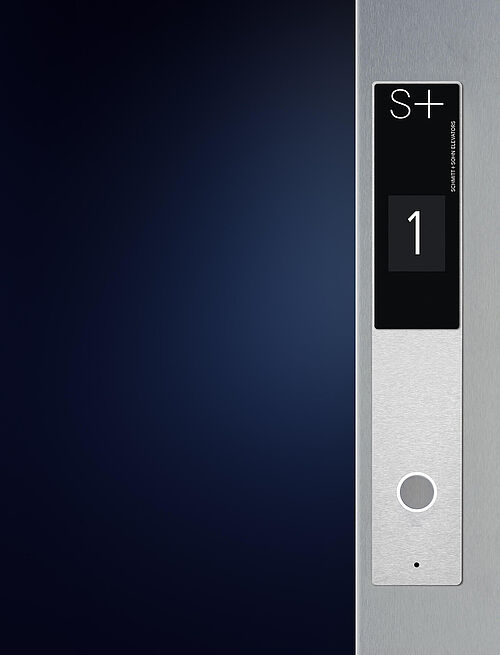

Operating panel, shaft doors
Stainless steel, satin finish, horizontal grain, mounted in door frame, concealed attachment. Information panel acrylic glass deep black. Skirting frame acrylic glass, white. Display white LED. Short-travel buttons, inset flush, round, button surface stainless steel, call acceptance LED blue, symbols plastic, light grey.
  Standard


Position in the masonry, easier accessibility to DIN EN 81-70. Operating panel screwed.

  Accessories

Large buttons, suitable for the disabled to EN 81-70, Annex B, panel width 80 mm.

  Accessories
Controls
Single-button collective control in state-of-the-art bus technology. Fast orientation and prevention of failed rides for short waiting times and high transportation capacity. Service access frame at last stop, primed. Overload control. Frequency control for load-independent travel curves and flushness. Battery-buffered, load-dependent emergency rescue to the next stop.
  Standard


Emergency power and evacuation functions. Access control systems. Penthouse control. Priority carriage with key switch. Floor announcement. Travel direction displays and acoustic signals to DIN EN 81-70. Interfaces to building management systems.

  Accessories

Service access point frame made of stainless steel, satin finish, stainless steel linen.

  Accessories

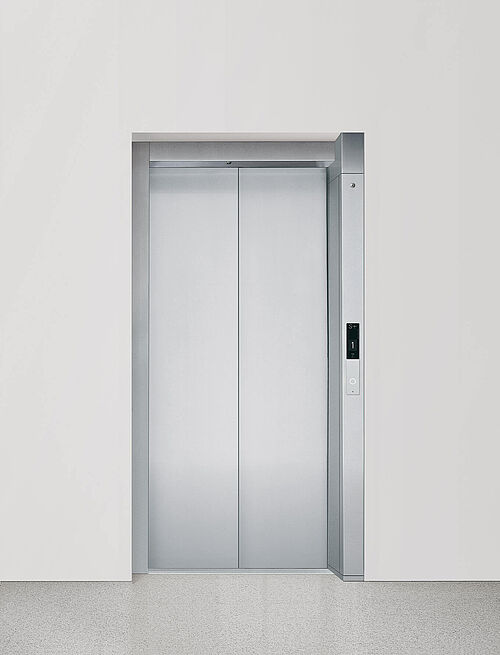

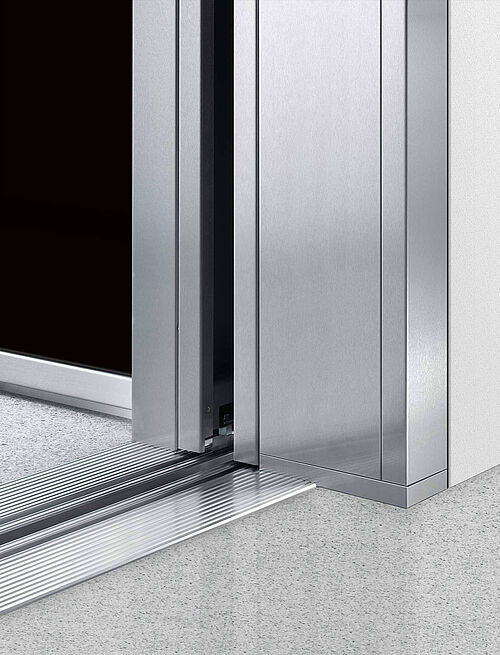

Service access frame at any stop or service panel in neighbouring rooms.

  Accessories

Collective two-button control, collective group control.

  Accessories
Emergency call system
Digital emergency call and diagnosis system to EN 81-28 for emergency call transmission to the continually-manned Schmitt + Sohn Service Centre. Electronic misuse suppression.
  Standard


Video misuse identification for the digital emergency call and diagnosis system.

  Accessories

Remote monitoring of elevator attendant functions, transmission of diagnosis data, GSM module.

  Accessories
Shaft
Acoustic decoupling element for the drive to reduce structure-borne sound transmission that meets the increased requirements of DIN 8989.

  Accessories
Drive
Gearless cable drive in the shaft. High efficiency and low power consumption. Load dissipation via the guide rails into the shaft pit. Speed 1.0 and 1.6 m/sec, travel height up to 40 m.
  Standard

Lifting gear
Special elevator suspension ropes, very smooth running, maintenance-free. No electronic monitoring required.
  Standard

Energy-saving mode
Deactivation of cab light, fan and displays in the event of stoppage. On call entry, the assemblies switch themselves on again automatically. Potential saving of up to 70% of power consumption.
  Standard

Standby mode
Staged running-down of light grid, controls and frequency regulation after longer standstill (night mode).

  Accessories
Energy calculator
Preparation of energy efficiency forecasts according to ISO 25745.

  Accessories
Shaft smoke extraction
X-TRAC: heat loss reduction system via shaft ventilation. Electrically controlled window, rooflight dome or ventilation hood.

  Accessories
Intermediate circuit collective switching
Reciprocal energy feed in case of opposite movement direction of cabs in one group.

  Accessories
