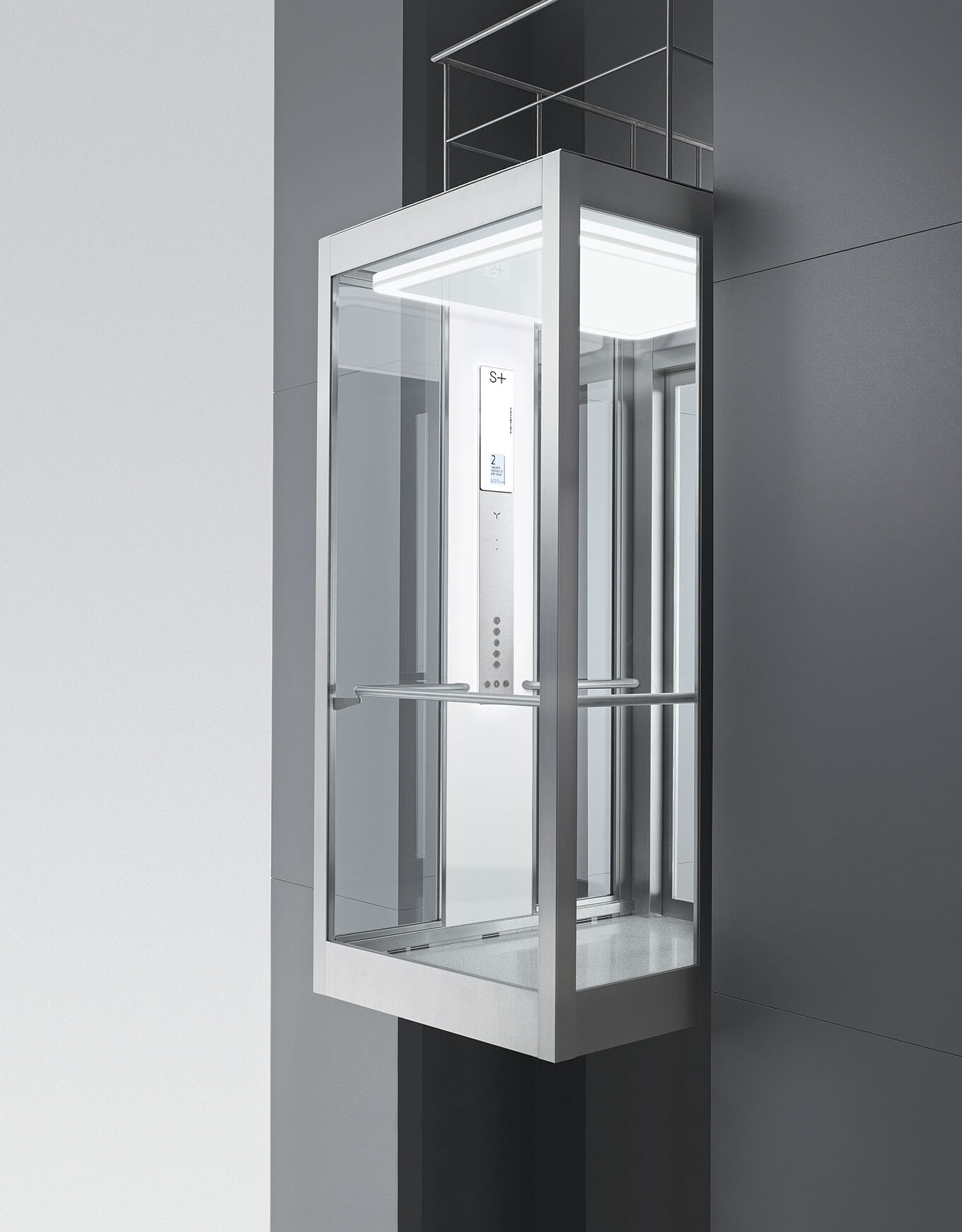

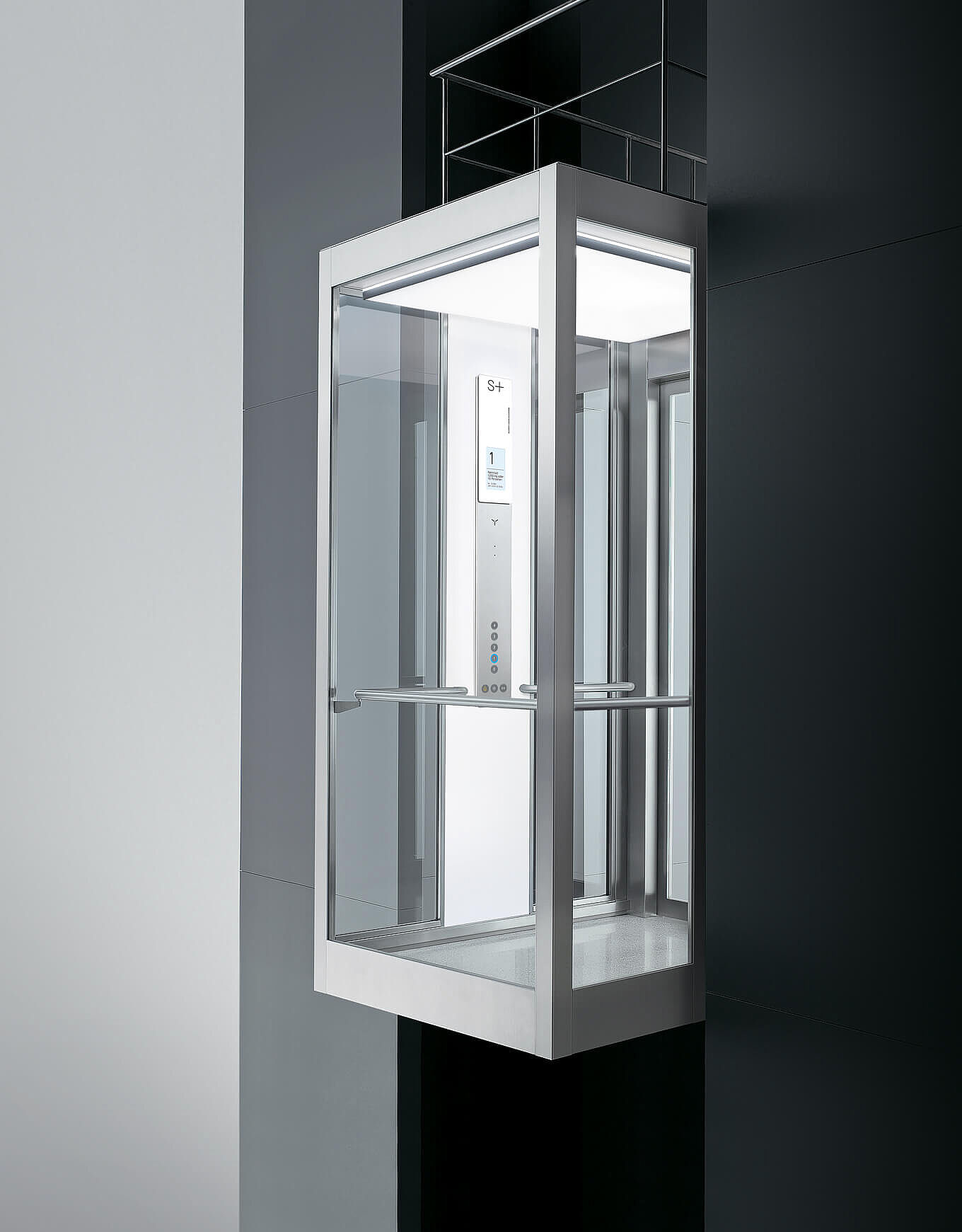

Changing perspectives – The GP Glass Panorama Elevator gives you the combined experience of architecture and vertical movement.

Fascinating views
Developed for architecture that strives to break new ground. The view from the glass elevator opens up new perspectives. Only materials that match the overall characteristics of the product are used. In harmony with the architect’s goals and the design of the building, the Glass Panorama Elevator represents an inspiring dialogue between architecture, technology and design.

Delicate structure
An eye for the extraordinary for customers with high demands: Born out of passion and many years of experience, delicate structures highlight a special design with a focus on transparency and maximum functionality.

High-quality equipment

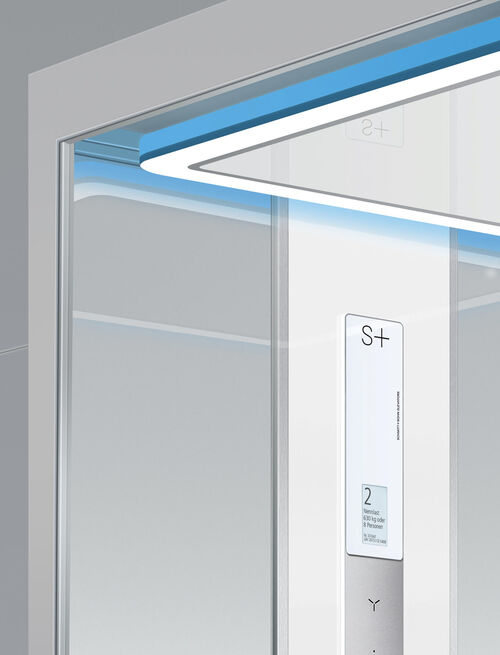

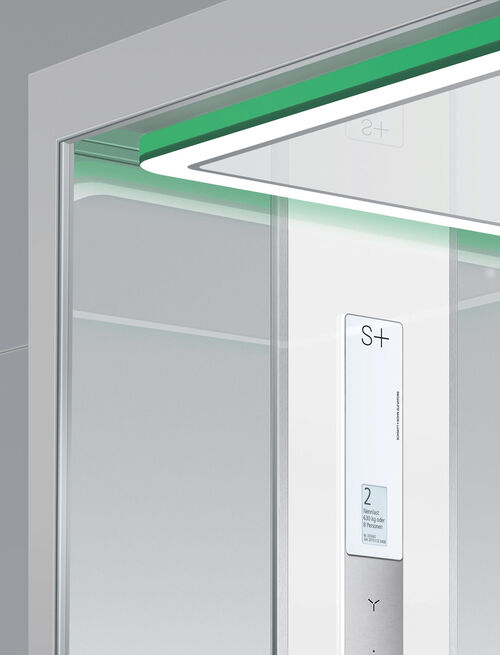

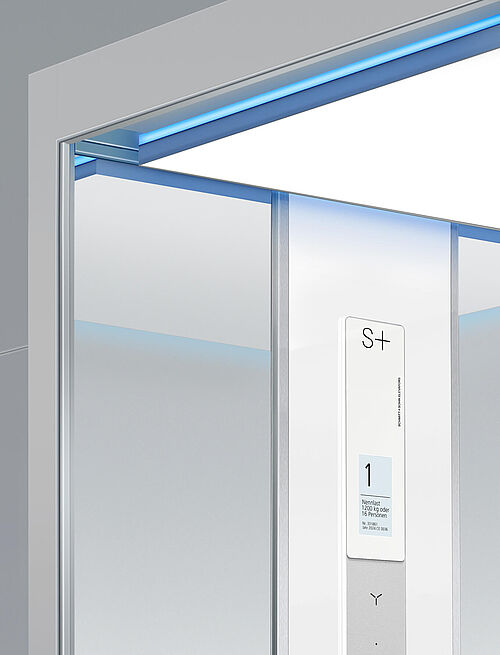

Our innovative LED illuminated ceilings showcase lighting design in its finest form. Intelligent RGB colour controls enable a variety of attractive designs: The interplay between colour changes and colour rhythms creates inspiring lighting moods in the glass cabin. With its appealing details and precise information, the Glass Panorama Elevator invites passengers with an impressive sense of space and a comfort-oriented interior design. Inspiring in every detail, it is a premium elevator that sets international standards.

Configure your Glass Panorama Elevator here or find out more about Schmitt + Sohn passenger elevators.

Accessories - for individual requirements

Product specification

show complete product specifications

GP Glass Panorama Elevator - product specifications

From a conviction for good building practice and for customers who place the highest demands on themselves and their partners. We have developed the Glass Panorama Elevator for everyone in search of first-rate performances.

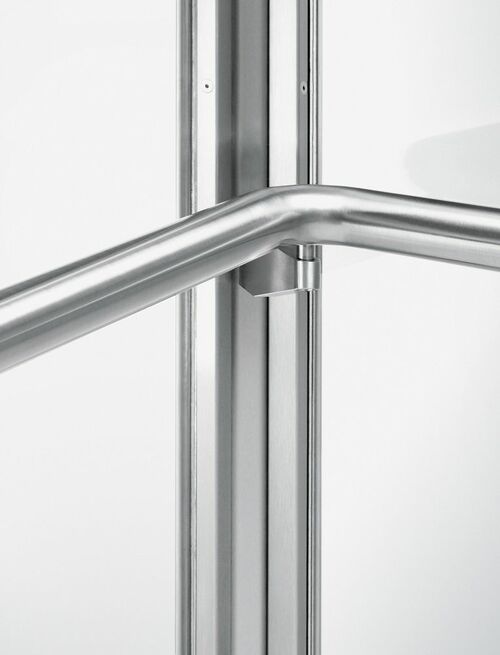

Hand rails, plinths, control panels, indicator panels and short travel keys of satin polished stainless steel for the highest possible value retention.

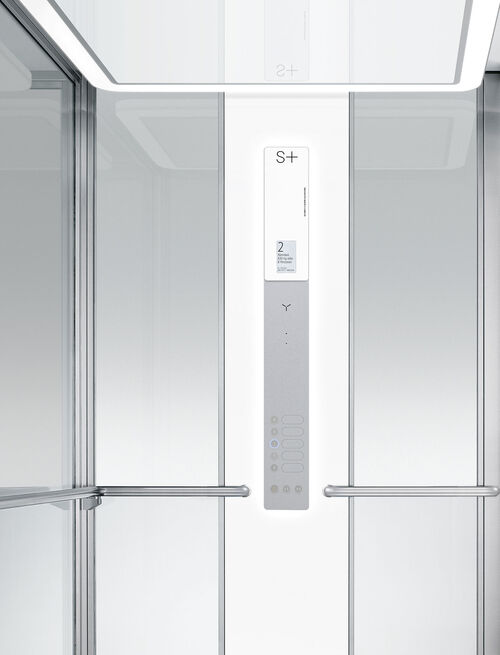

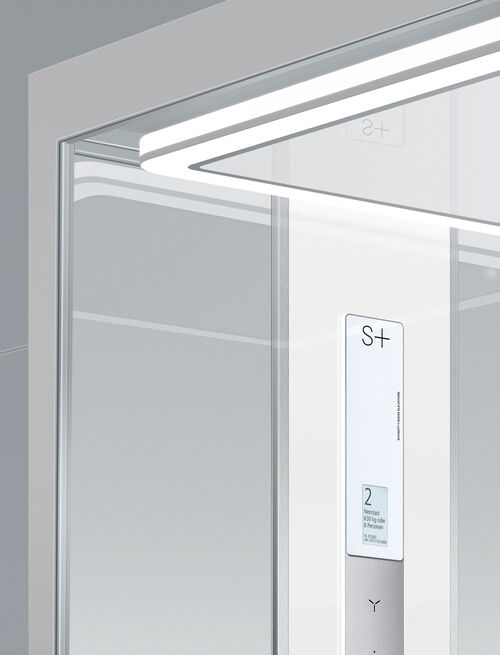

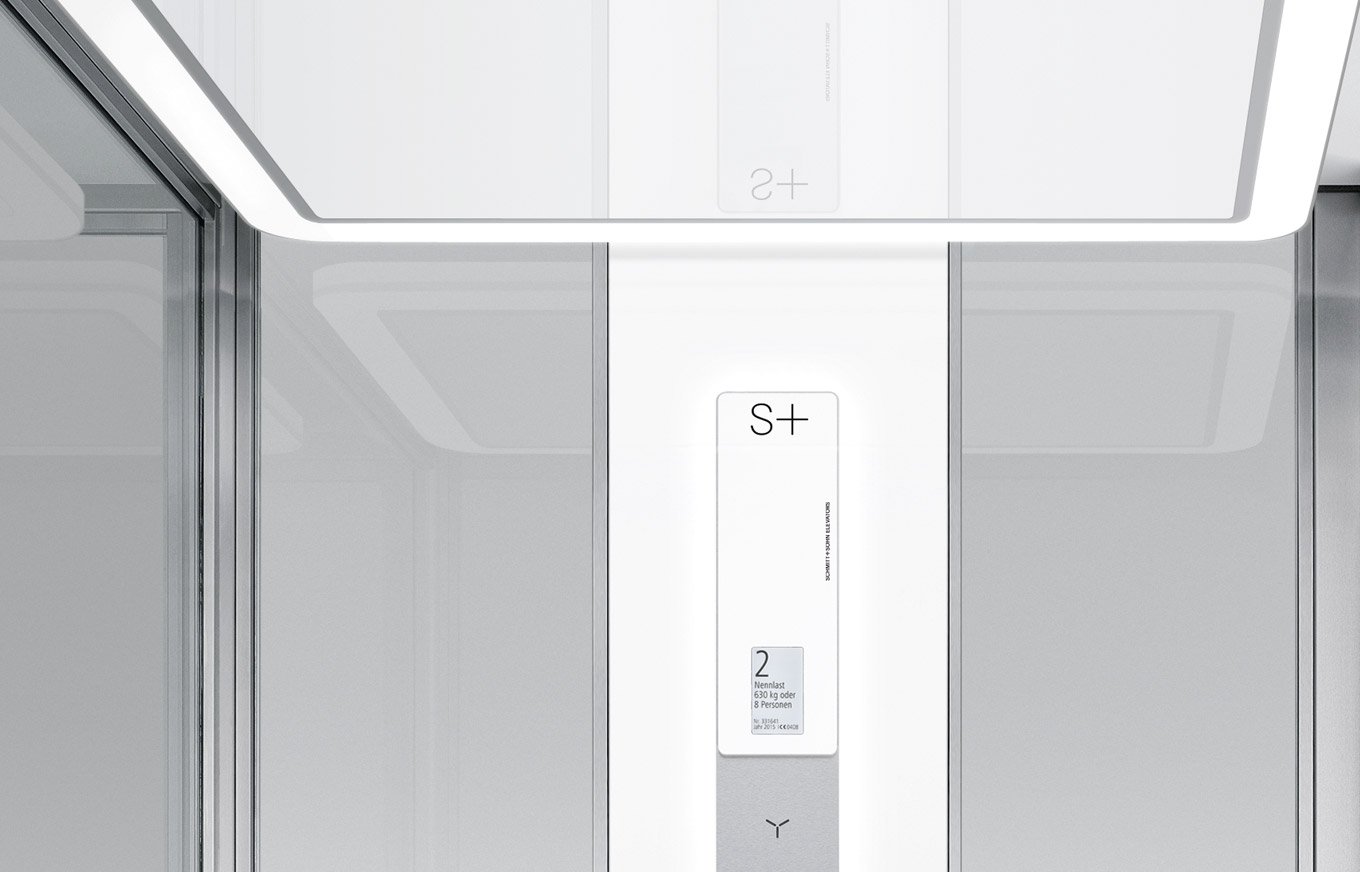

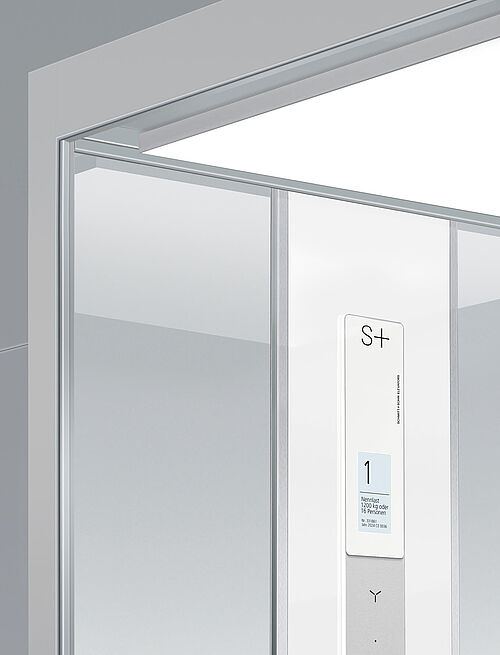

Suspended illuminated ceilings with laminated safety glass and point mounts of polished stainless steel ensure homogeneous illumination inside the cars. Schmitt + Sohn light design.

Light curtain at door height for safety and convenience.

Gearless drive units ensure quiet operation, reduce wear and low power consumption.

The complete GP product specifications can be found in the product brochure.



Detail
Description
Standard
Accessories
Side walls
Laminated safety glass LSG, stainless steel with finishing grinding. Glass frames stainless steel with finishing grinding
  Standard

Rear wall
aminated safety glass LSG. Glass frames stainless steel with finishing grinding.
  Standard

Car corners
Stainless steel with finishing grinding.
  Standard

Lighting

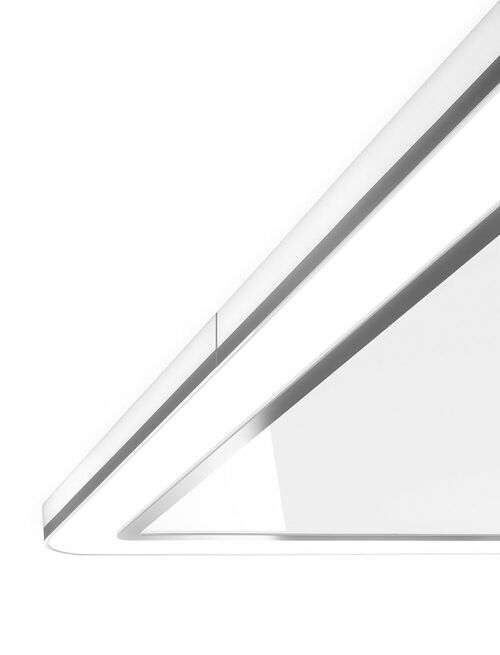

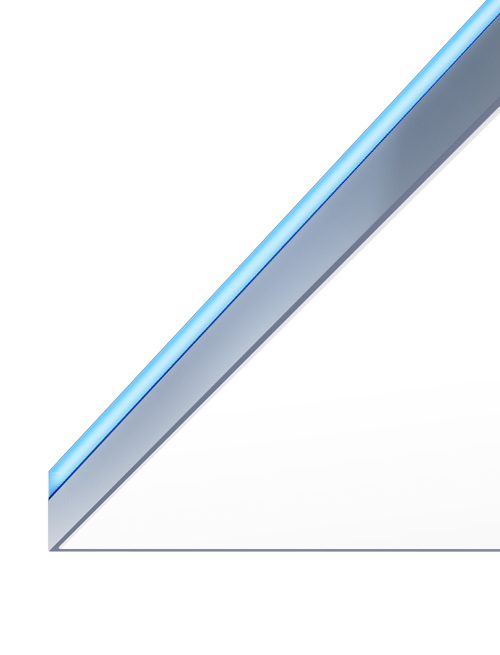

LD5X, suspended light ceiling. Central area LSG, matt film, unlighted. Light frame acrylic glass, white, polished, semi-transparent.
  Standard


Central area lighted.

  Accessories
Lamp
LED neutral white.
  Standard


LED-RGB with colour control.

  Accessories

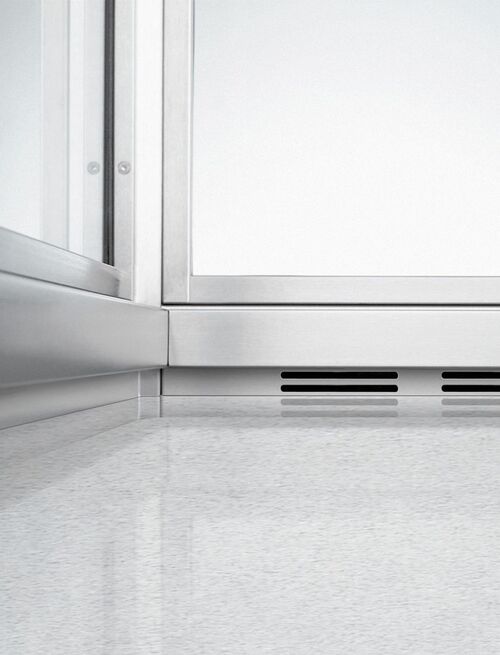

Plinth

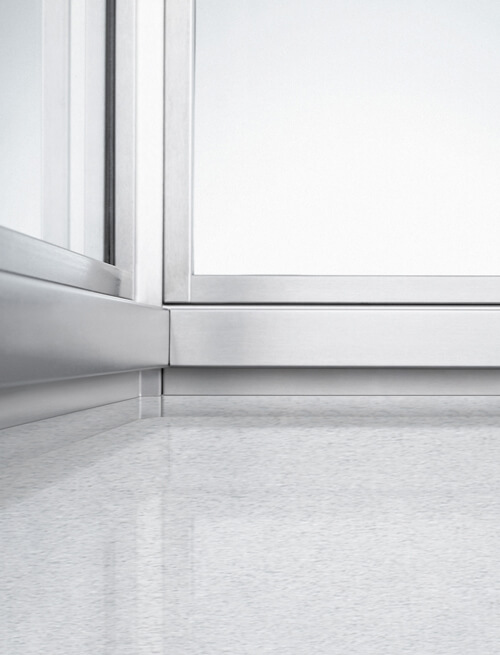

Stainless steel with finishing grinding. Concealed, generously dimensioned cab ventilation.
  Standard

Floor
Granite 90, light grey.
  Standard


Lowered cab floor for installed floor covering.

  Accessories
Car portal
Stainless steel with finishing grinding.
  Standard

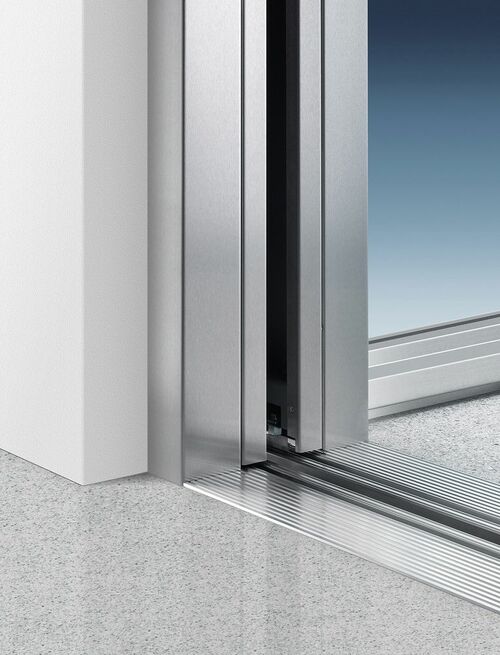

Car door

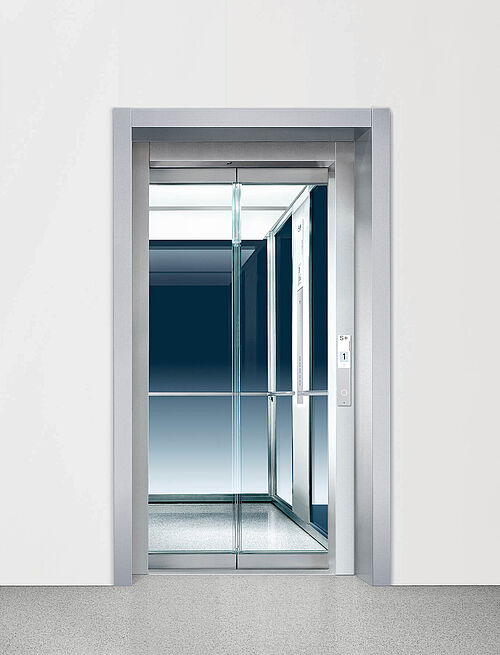

Full glass door. Laminated safety glass, stainless steel with finishing grinding, two-piece, centre-opening, door height 2.100 mm.
  Standard

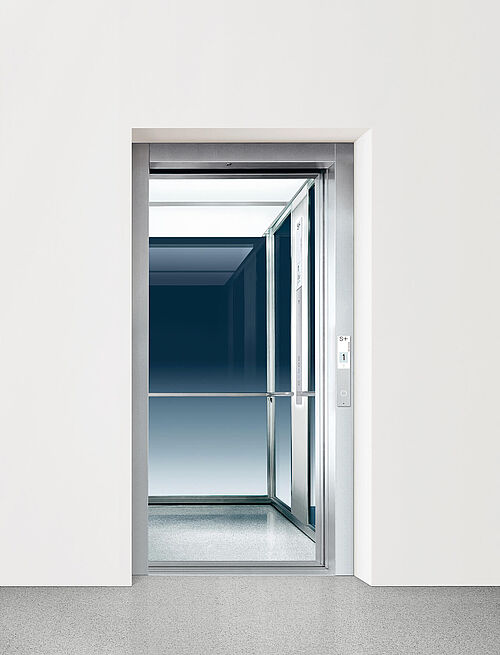

Full glass door, two-piece, opening one side.

  Accessories

Glass frame door. Laminated safety glass, stainless steel with finishing grinding.

  Accessories

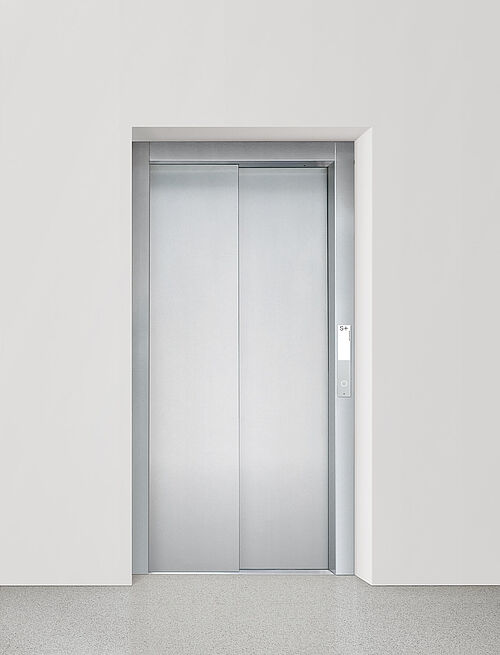

Steel plate door, stainless steel with finishing grinding.

  Accessories
Door drive
Energy-saving regulated drive with intelligent travel measurement.
  Standard

Door monitoring
2-D safety light grid over full door height (no light barrier!).
  Standard


3-D safety light grid with vestibule monitoring.

  Accessories

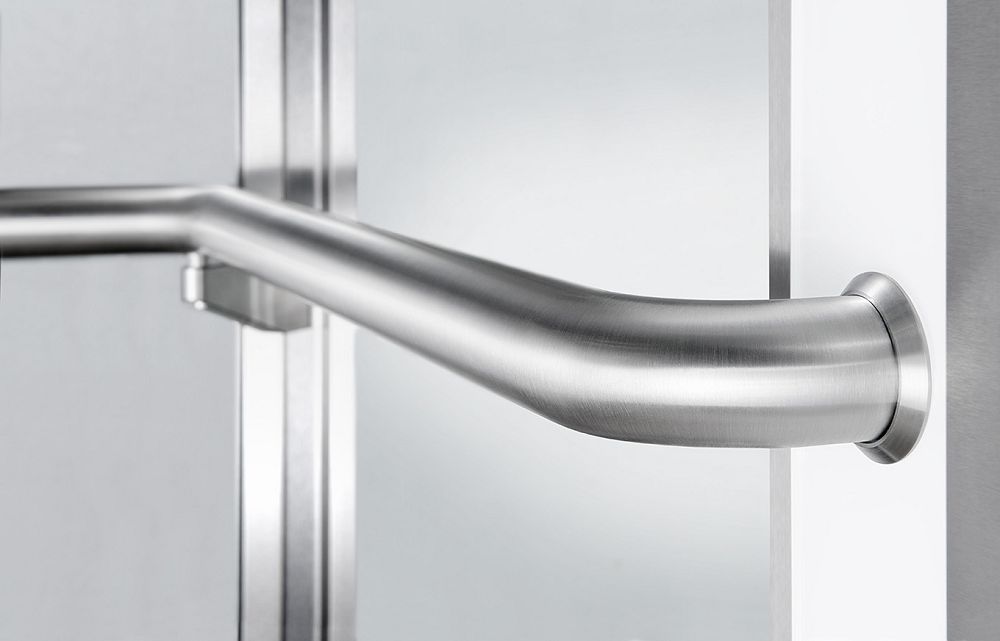

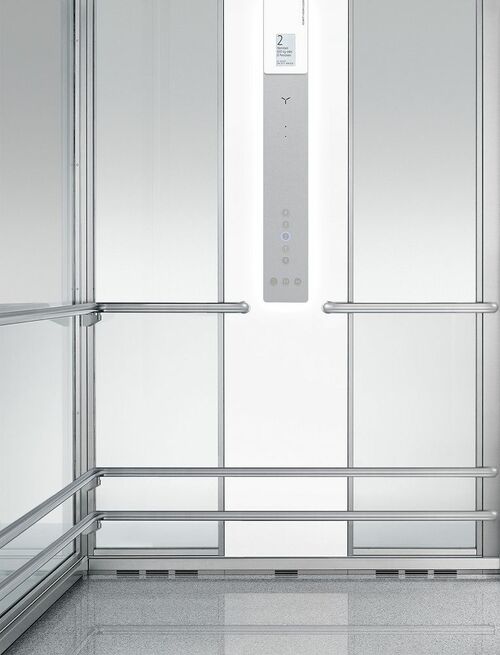

Hand rail
Stainless steel with finishing grinding, suitable for the handicapped to DIN EN 81-70:2005-09, rear wall, side walls ø 33.70 mm. Handrail holder stainless steel, solid. Corner connection stainless steel welded with finishing grinding.Handrail ends: Stainless steel.
  Standard

Protective strips

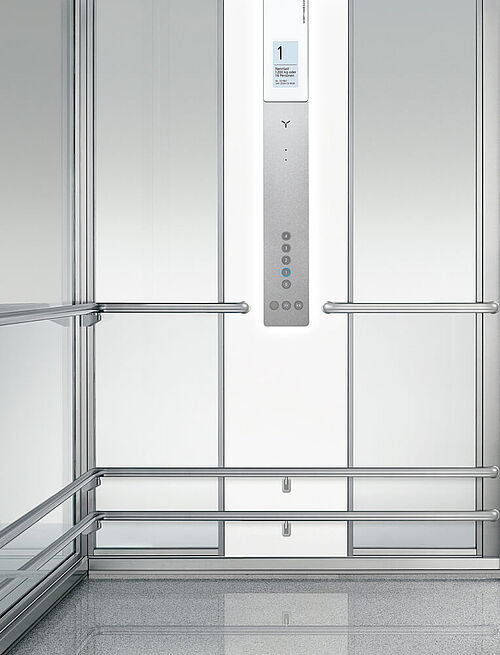

Stainless steel with finishing grinding, side wall ø 33.70 mm. Handrail holder stainless steel, solid. Corner connection stainless steel welded with finishing grinding.Handrail ends: Stainless steel.

  Accessories

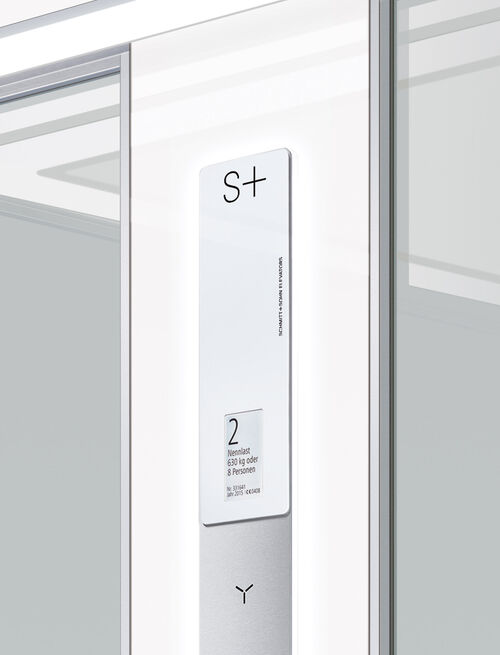

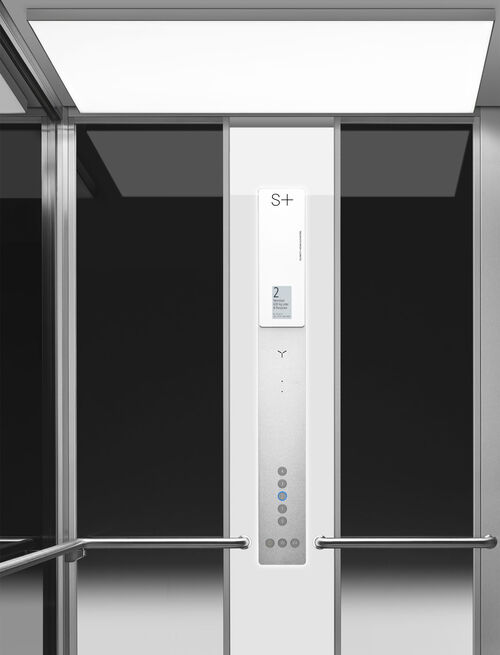

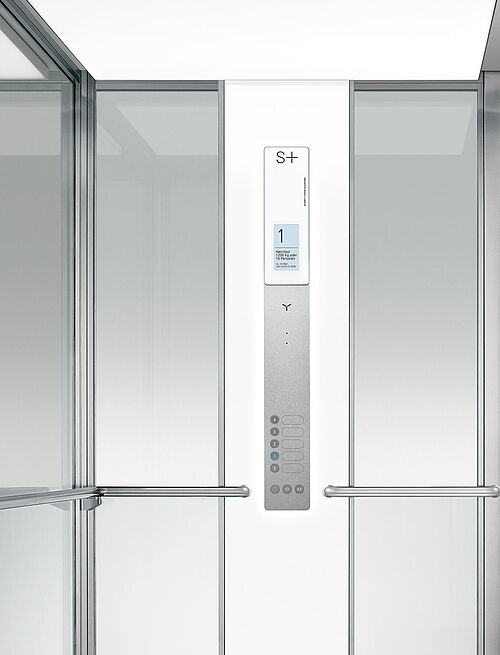

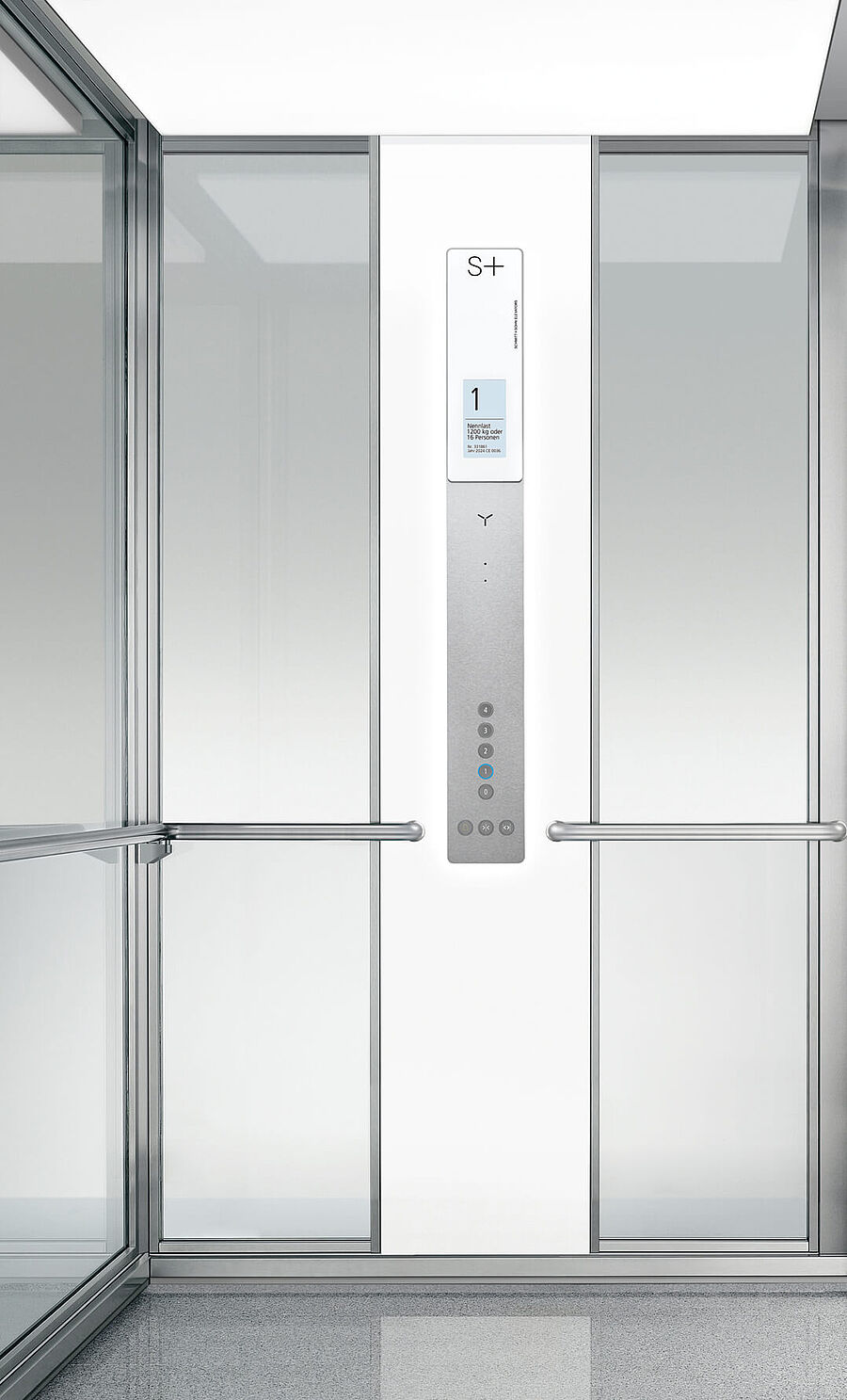

Car control panel

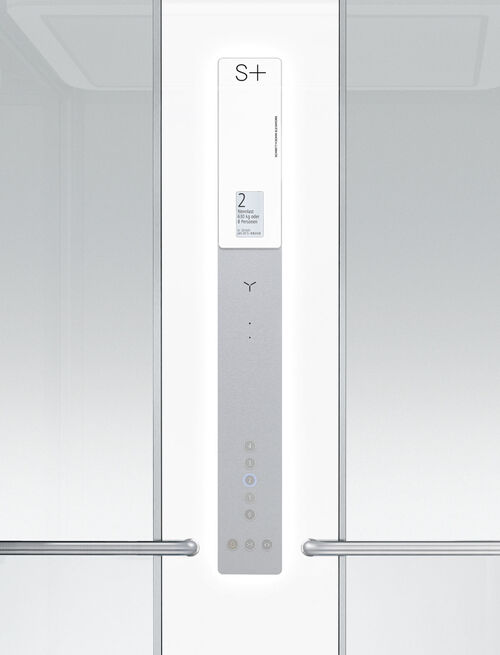

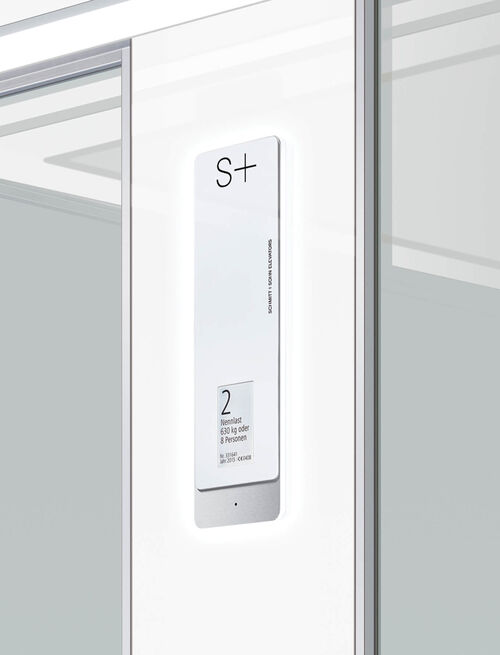

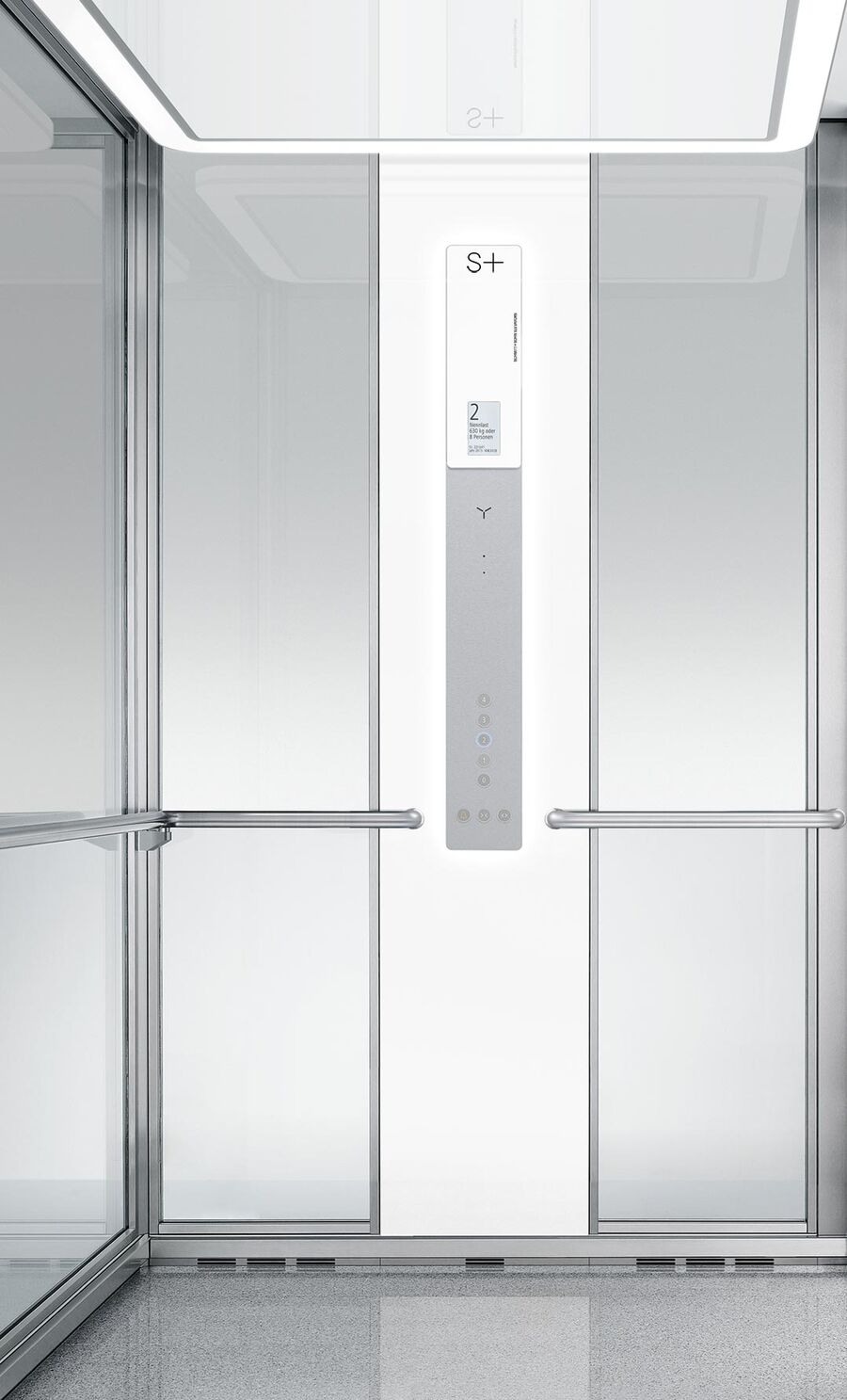

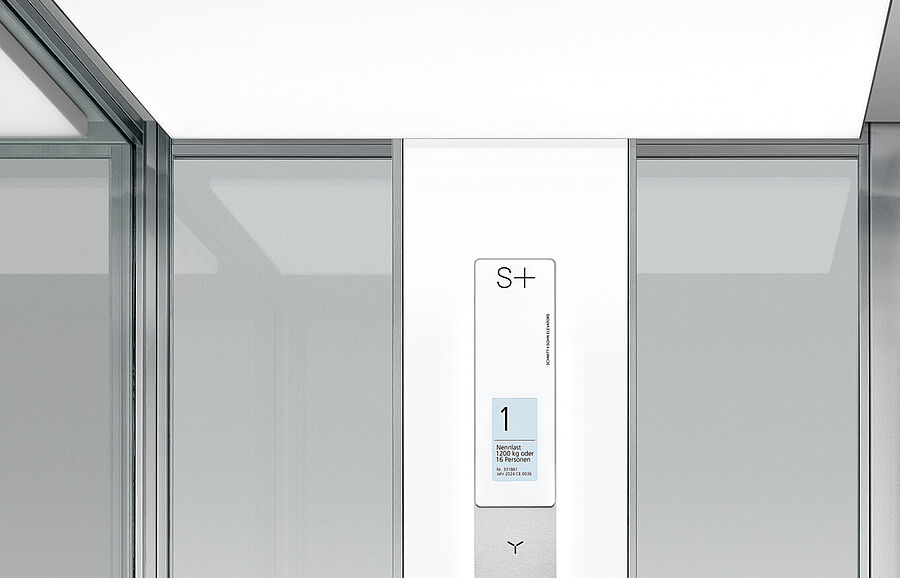

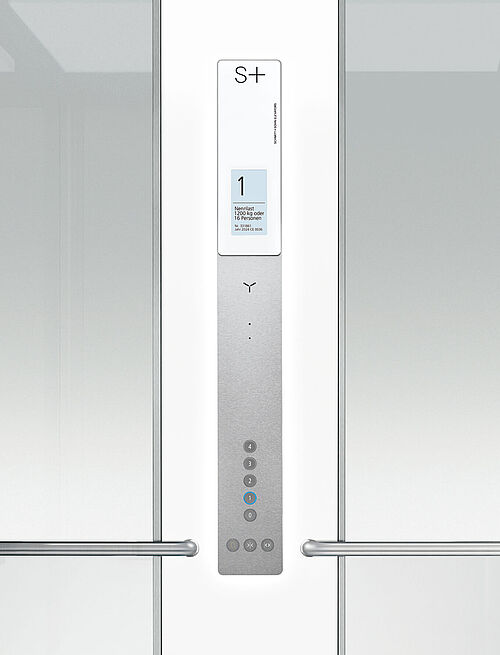

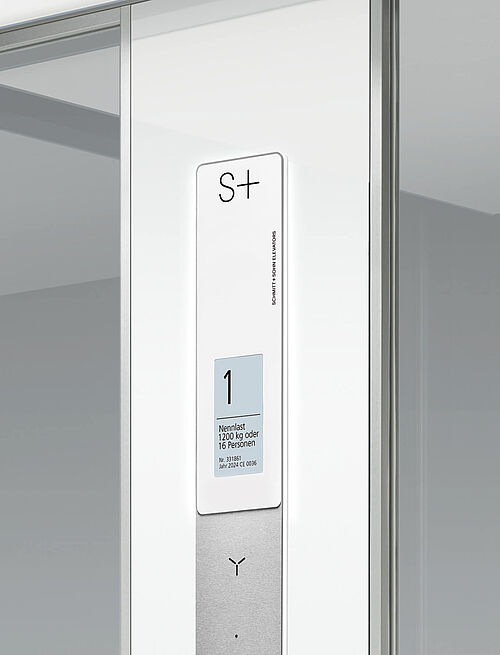

Stainless steel with finishing grinding, positioned suitable for the handicapped to DIN EN 81-70:2005-09, concealed attachment. Information panel acrylic glass, white, light frame acrylic glass, white, satin finish. Display high-resolution TFT. Short-travel buttons, flush, round, button surface stainless steel, call acceptance blue LED, symbols plastic, light grey.
  Standard

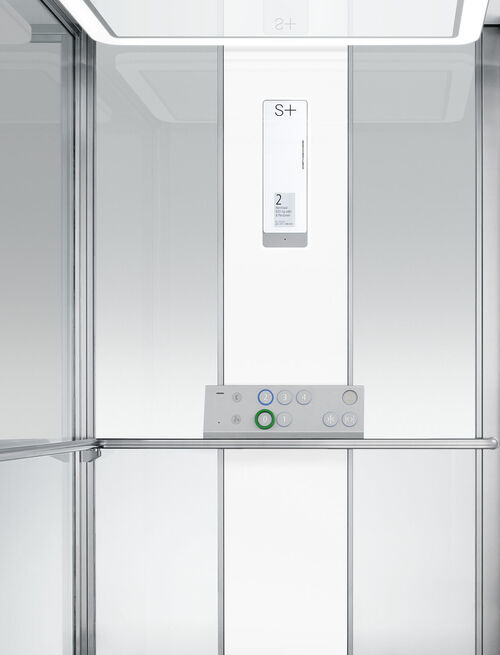

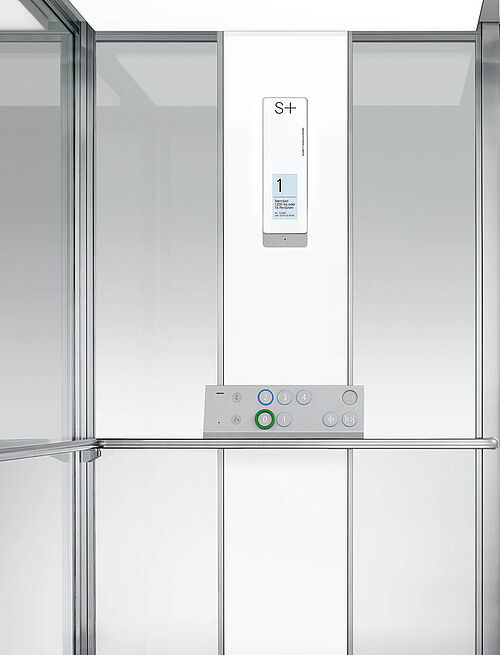

Stainless steel with finishing grinding, suitable for the handicapped to DIN EN 81-70:2005-09 Appendix G, horizontal, concealed attachment. Separate information panel. Large, raised buttons, round, button surface stainless steel, call acceptance blue LED, symbols raised, tactile, plastic, light grey.

  Accessories
Nameplates
Stainless steel with finishing grinding, concealed attachment, set flush in operating panel. Individually replaceable. Dark grey engraving.

  Accessories

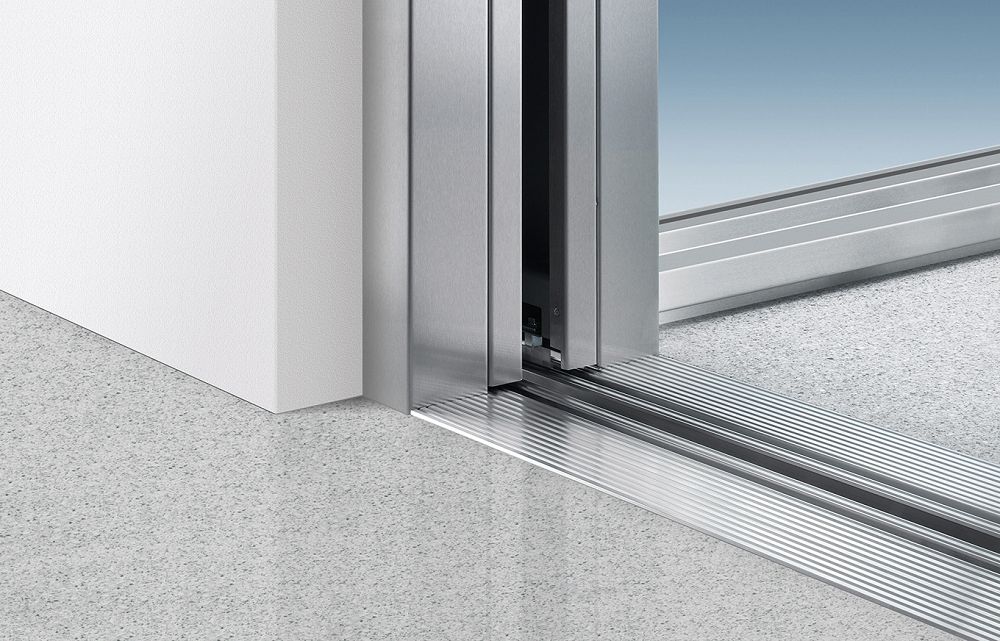

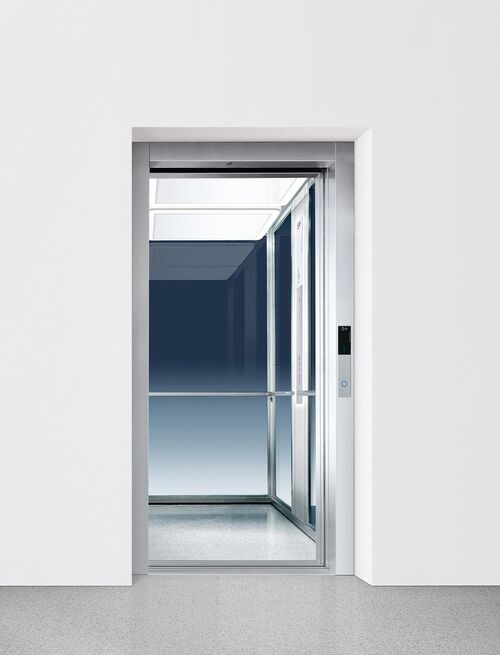

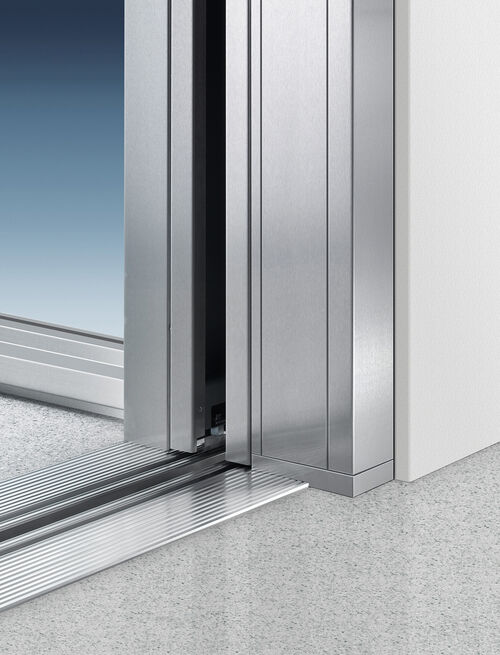

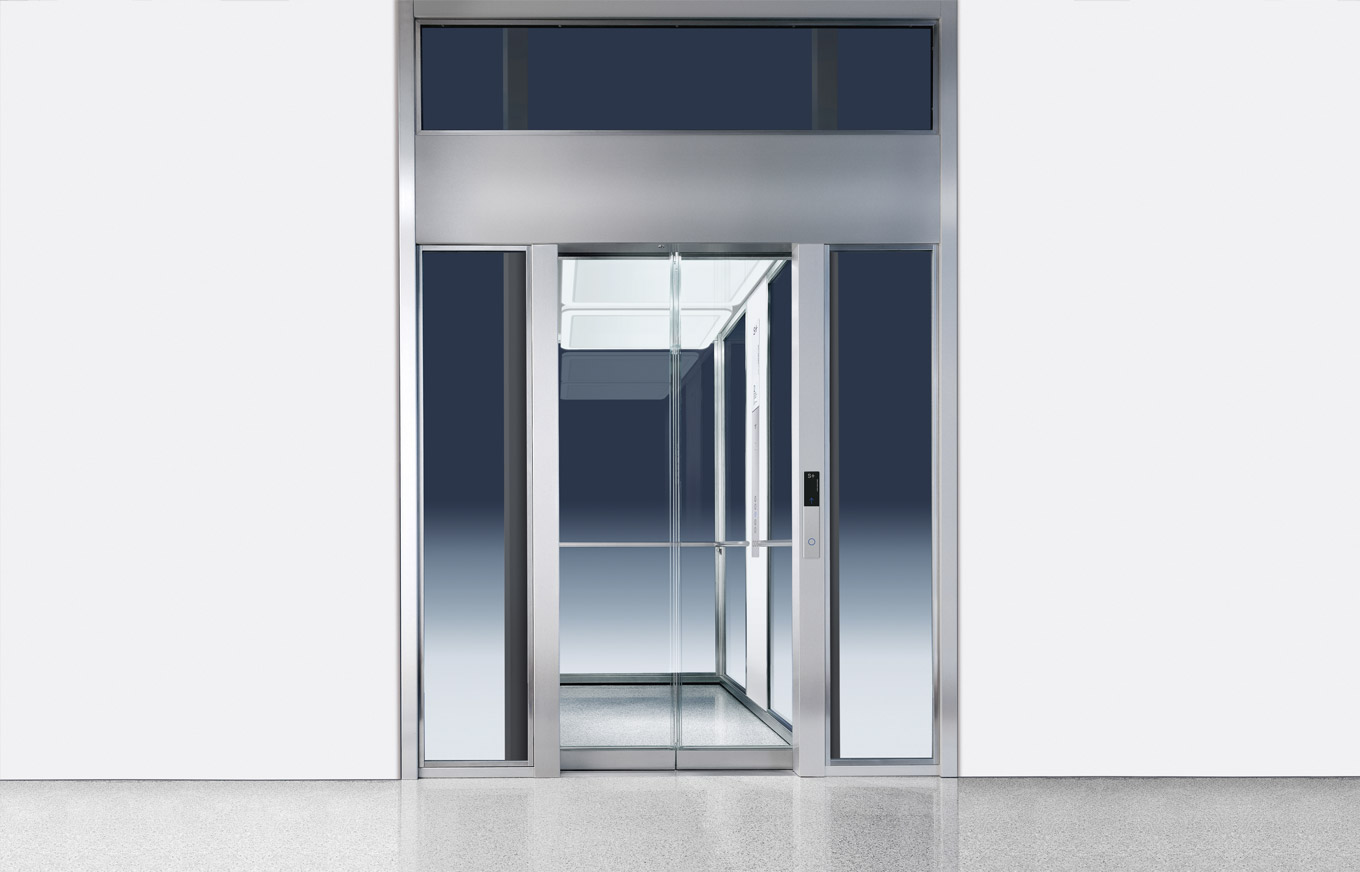

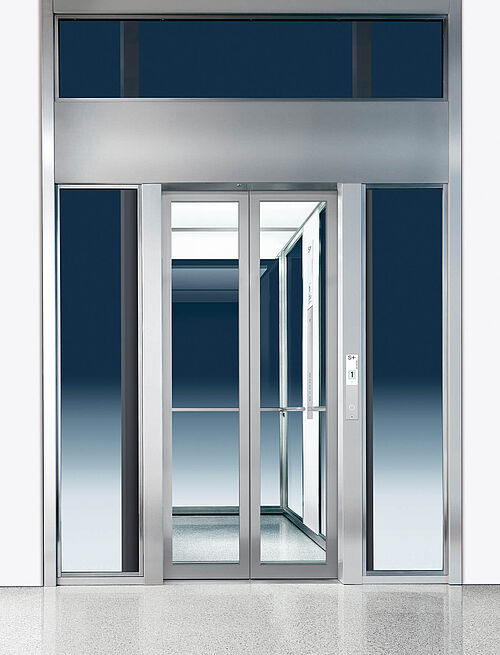

Shaft doors

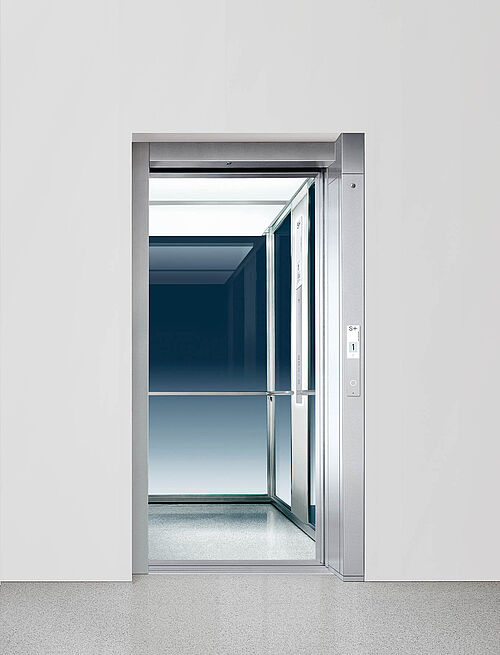

Full glass door, two-piece, opening one side.

  Accessories

Glass frame door. Laminated safety glass, stainless steel with finishing grinding.

  Accessories

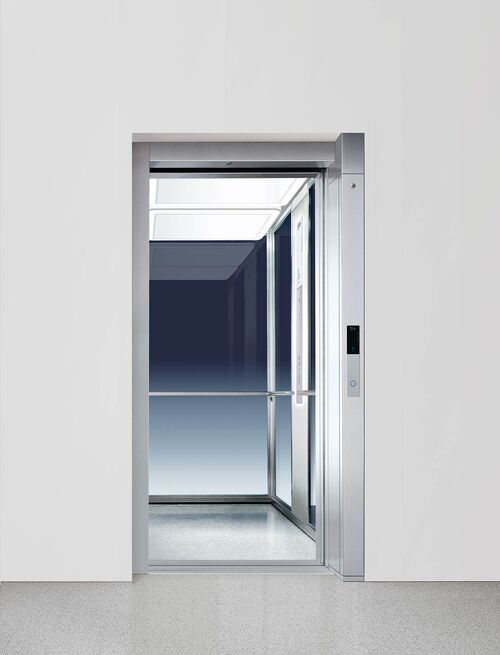

Full glass door. Laminated safety glass, stainless steel with finishing grinding, two-piece, centre-opening, door height as for cab door.
  Standard

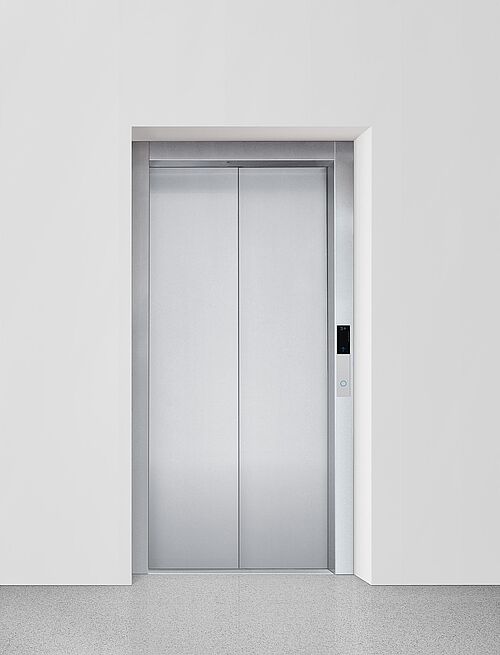

Steel plate door, primed, stainless steel with finishing grinding, stainless steel lines.

  Accessories

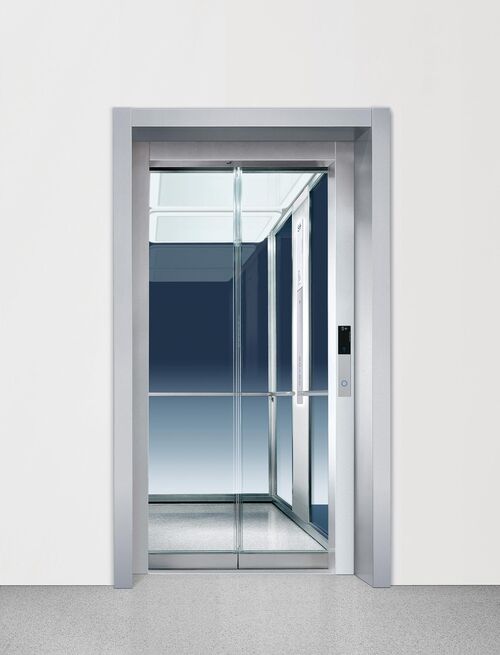

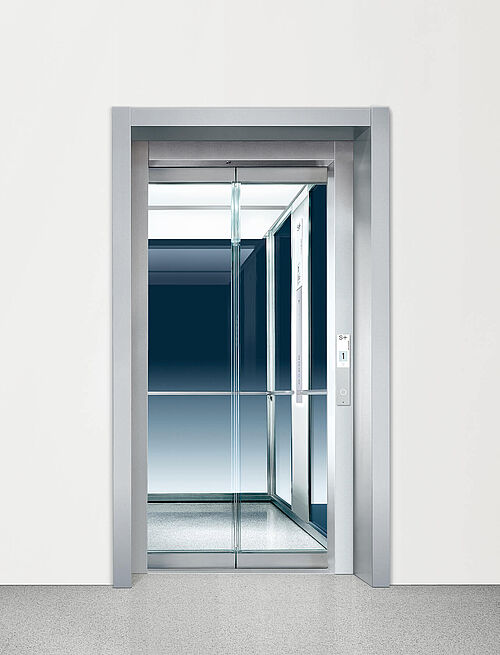

Wall bezel settings M1, primed, stainless steel with finishing grinding, stainless steel, linen.

  Accessories

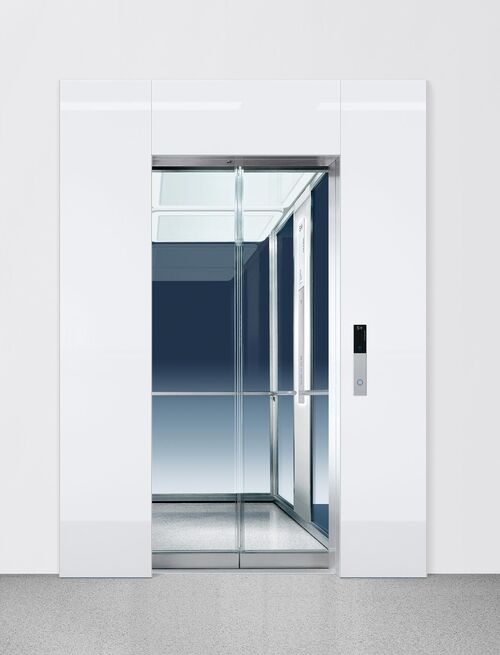

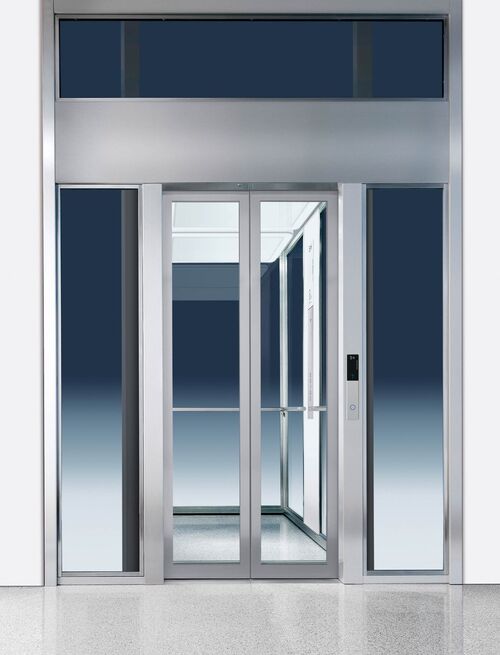

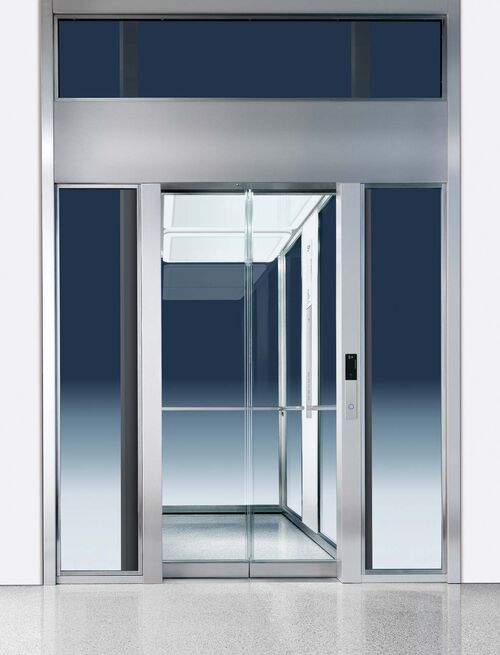

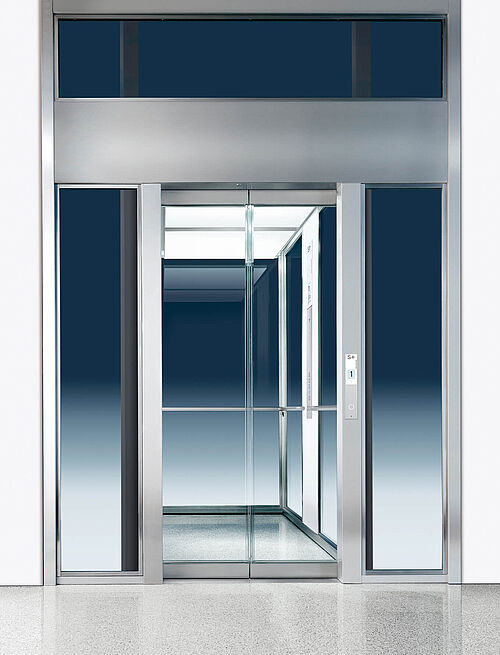

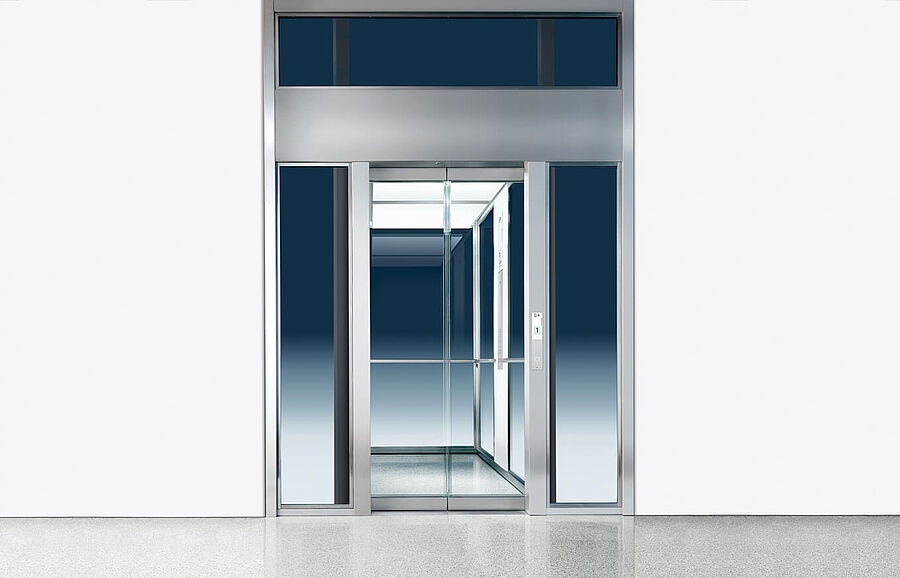

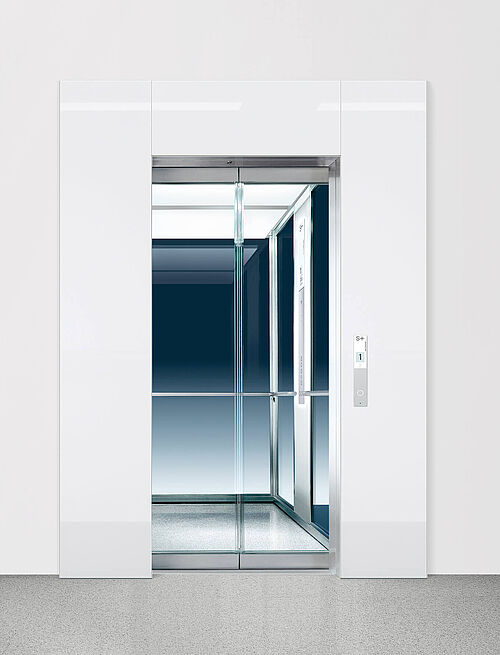

Portals: P1 primed, stainless steel with finishing grinding, stainless steel lines. Color Glas®. P7-G laminated safety glass.

  Accessories
Shaft doors control panel
Positioned in the portal or masonry, easier accessibility to DIN EN 81-70:2005-09, cover plate screw-fitted.

  Accessories

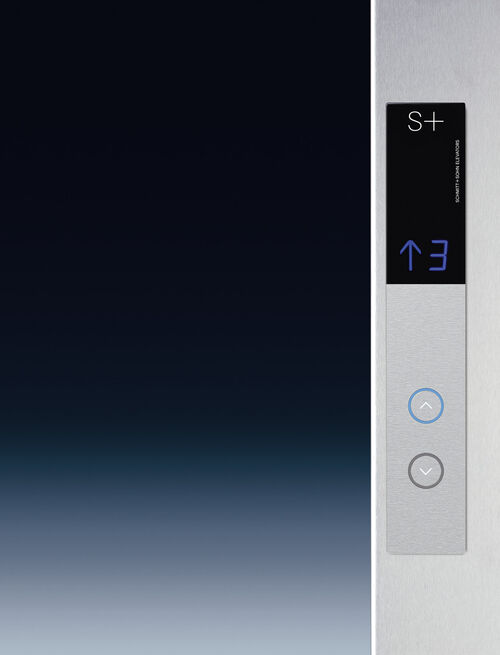

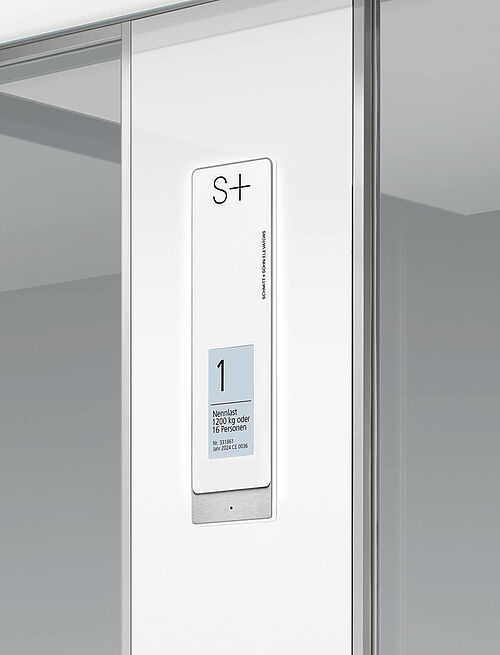

Satin polished stainless steel, arranged in door frame, invisible fastening. Flush short travel key, round. Stainless steel touch surface, blue LED call acknowledgement, icons of light-grey plastic.
  Standard


Large surface buttons, adapted to the needs of the disabled in accordance with DIN EN 81-70:2005-09 Annex G, panel width 80mm

  Accessories
Control unit
Single-button collective control in the latest bus technology. Fast orientation and avoidance of wasted trips for short waiting times and a high transportation capacity. Service panel in the uppermost stop, primed. Overload control. Frequency control for load-independent speed curves and flush stop. Battery-buffered, load-dependent emergency-release procedures at the next stop.
  Standard


Auxiliary power and evacuation functions. Access control systems. Penthouse control. Priority travel with key-operated switch. Floor announcement. Direction of travel indicators and acoustic signals in accordance with DIN EN 81-70:2005-09. Interfaces to building management system.

  Accessories

Service panel stainless steel with finishing grinding.

  Accessories

Service panel at any stopping point or neighbouring rooms.

  Accessories

Collective two-button control, collective group control.

  Accessories
Remote emergency call
Digital emergency call and diagnosis system to EN 81-28 for emergency call transmission to the continually-manned Schmitt + Sohn Service Centre. Electronic misuse suppression.
  Standard


Video misuse detection for the digital remote alarm and diagnosis system.

  Accessories

Remote monitoring of lift attendant functions, transmission of diagnosis data, GSM module.

  Accessories
Drive
Gearless cable drive in the shaft. High efficiency and low power consumption. Speed 1.0 and 1.6 m/sec. Travel height up to 40m.
  Standard

Load carriers
Plastic-coated steel ropes, very quiet operation, reduced wear (compared to conventional steel ropes), ø > 8mm, maintenance-free. No electronic monitoring and no lubricant needed
  Standard
