G-X The Color Glass® Elevator – excellent quality, progressive, purist design and convincing technology in this fascinating premium elevator.

CG-X - the premium glass elevator made with high-quality surfaces stands out through its fascinating design and highest quality standards.

The CG-X Color Glass® Elevator - a fascinating, independent and unmistakeable design combined with the economic and service efficiency of an experience partner - the premium elevator of glass for discerning architecture.

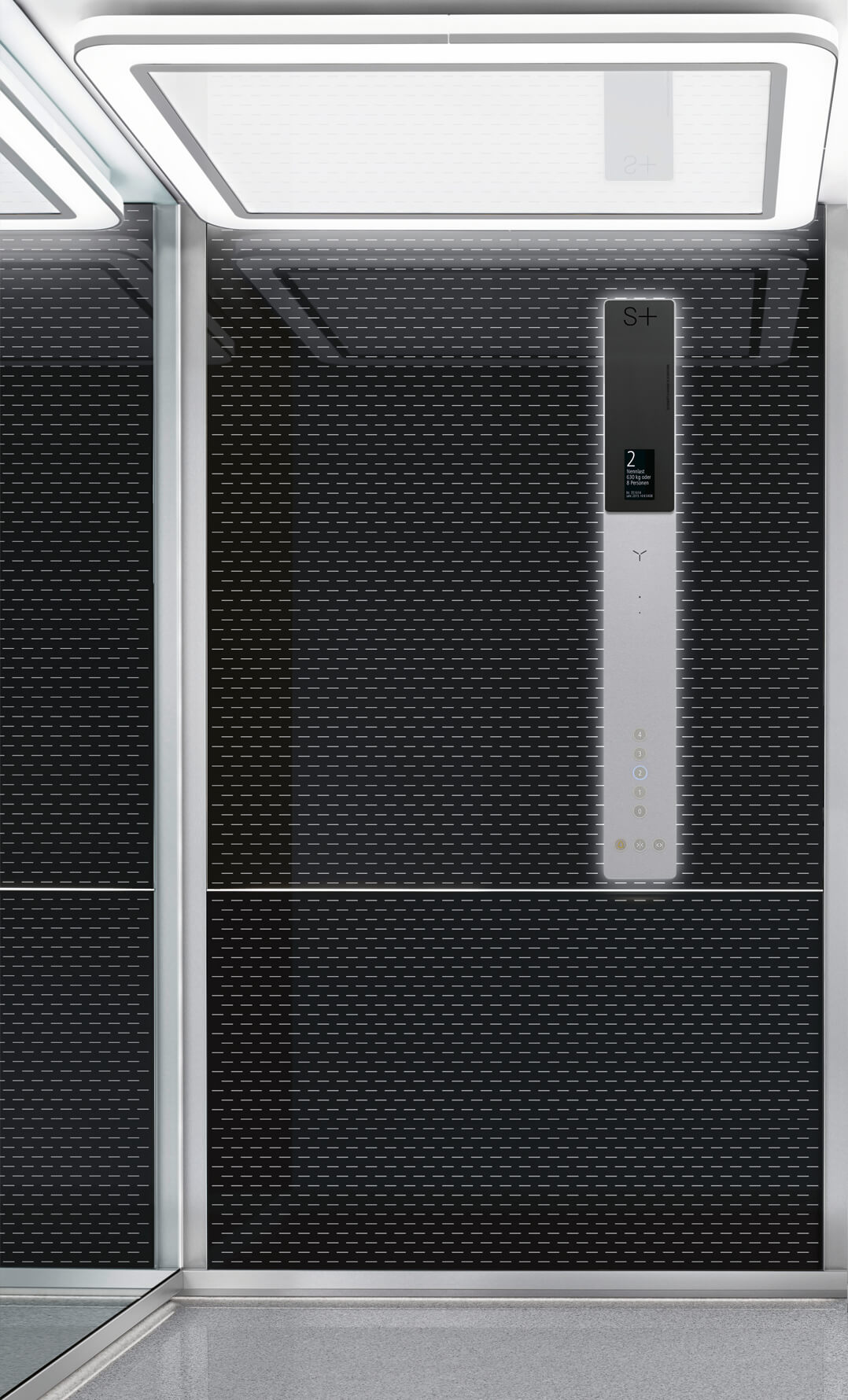

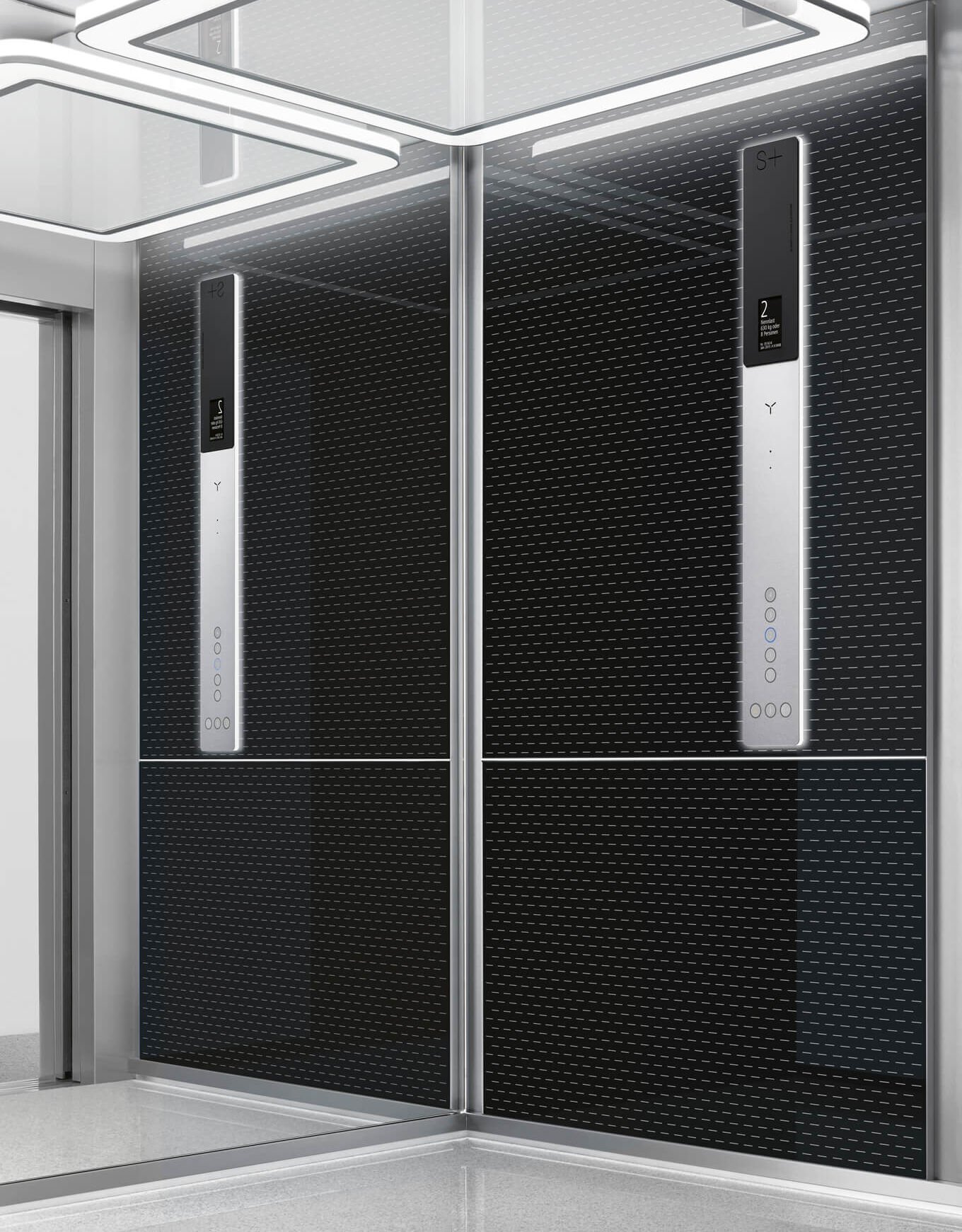

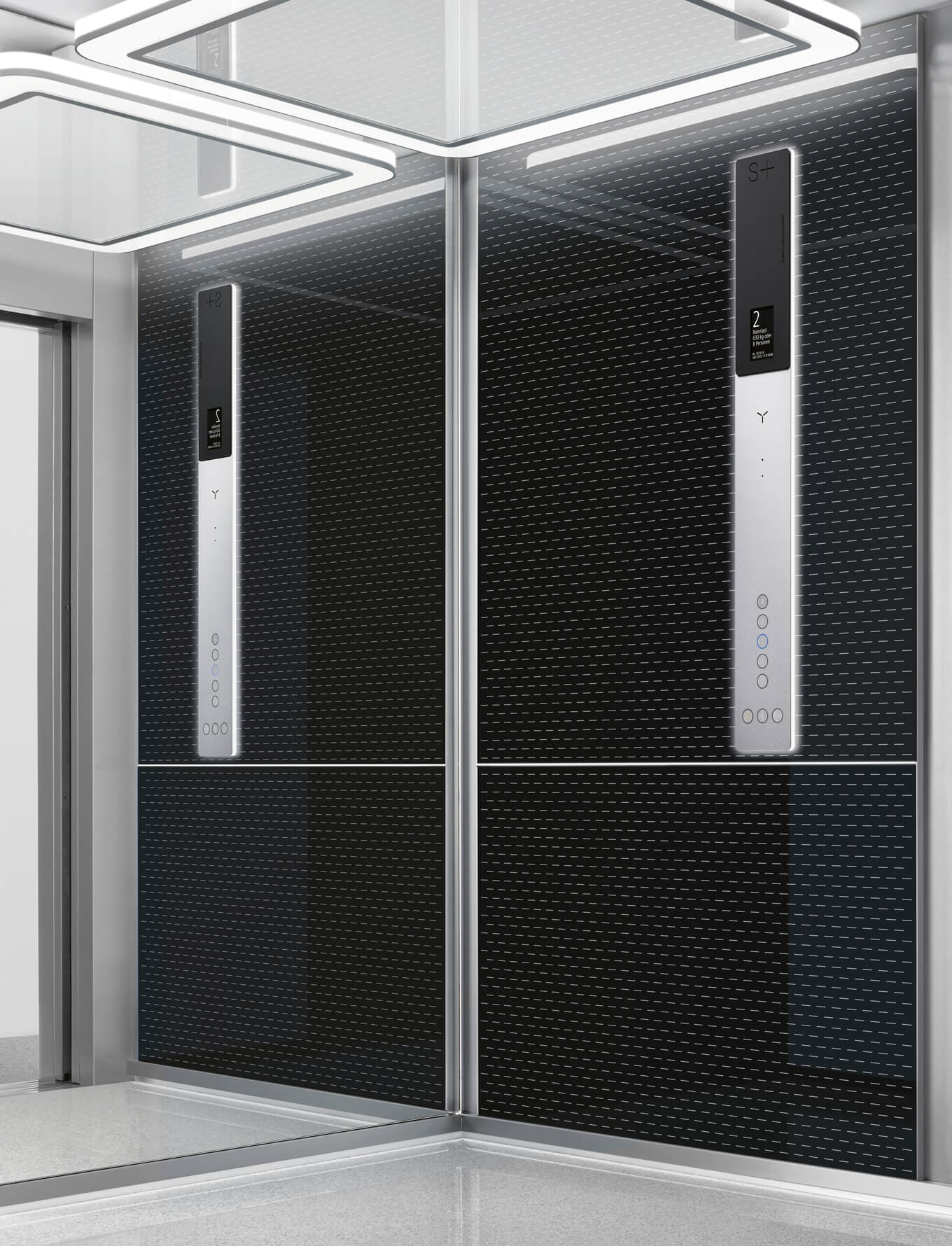

CG-X design – first-class elevator design combined with elegant artwork and an excellent light design. Clear in form and function - reduced to the essentials. Purist. This premium elevator effortlessly presents itself in clearly contrasting black and white. The combination of brilliant Color Glass® with precise line graphics produces a fascinating, independent and unmistakeable design – an inspiring, string and individual statement. The equipment and design of the CG–X elevator cars with top-class materials, convincing details and precise information is tailored to a generous feeling of space and a comfort-oriented interior concept. Highly functional and novel LED RGB illuminated ceilings impressively present a perfect light design. The brilliant light quality emphasises the unusual elegance of the CG–X cars. Furthermore, a number of attractive designs with intelligent RGB colour controls are also possible. Colours, changing colours and rhythmic colours can be very effectively combined with each other. This creates convincing and inspiring light moods in the CG–X cars.

CG-X  efficiency – the CG-X glass elevator sets standards here too. No machine room, space-saving, with low energy and operating costs. Apart from the outstanding advantages of the drive system, the CG-X is your first choice for a future-proof investment: as a high-quality, unique and innovative series elevator. Easy to plan. Quick to manufacture. Safe to install. Service-friendly. The high-quality materials and careful design of clever details guarantee that it retains its value and make this a unique elevator. Combined with the excellent service, it stands for the high availability of every Schmitt + Sohn elevator.

CG-X comfort and safety – just like all of the other products from Schmitt + Sohn, the focus is on ergonomics and travelling comfort in this premium elevator for discerning architecture. We have achieved a symbiosis between aesthetics and comfort in a development dialogue involving architecture, design and technology. Our elevators’ users, operators and service personnel enjoy the effective protection of a comprehensive safety concept. Developed in accordance with European standards. Naturally type-tested. Our own qualified development, sales, production, installation and service personnel who regularly attend further training courses ensure the highest quality and permanent availability.

For customers who place the highest demands on product and architecture quality and who are looking for long-term partnerships. A premium elevator that will delight you from planning through to service. An elevator that has set international standards. An elevator quality you will appreciate.

From the belief of a family-run company with a long tradition. In the responsibility towards employees, customers and partners.

Welcome to Schmitt + Sohn.

Standard equipment

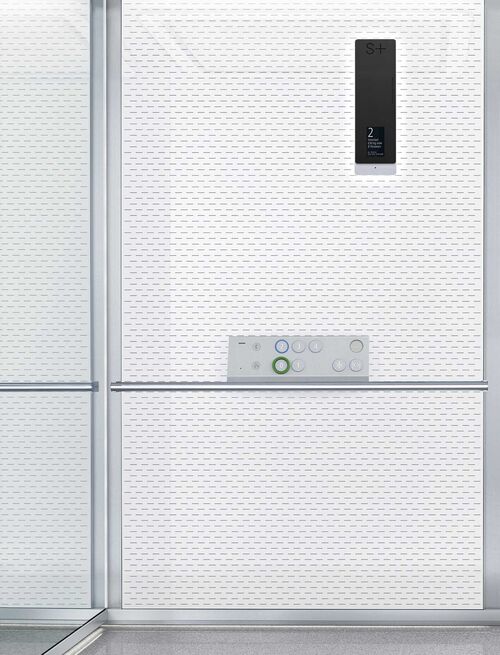

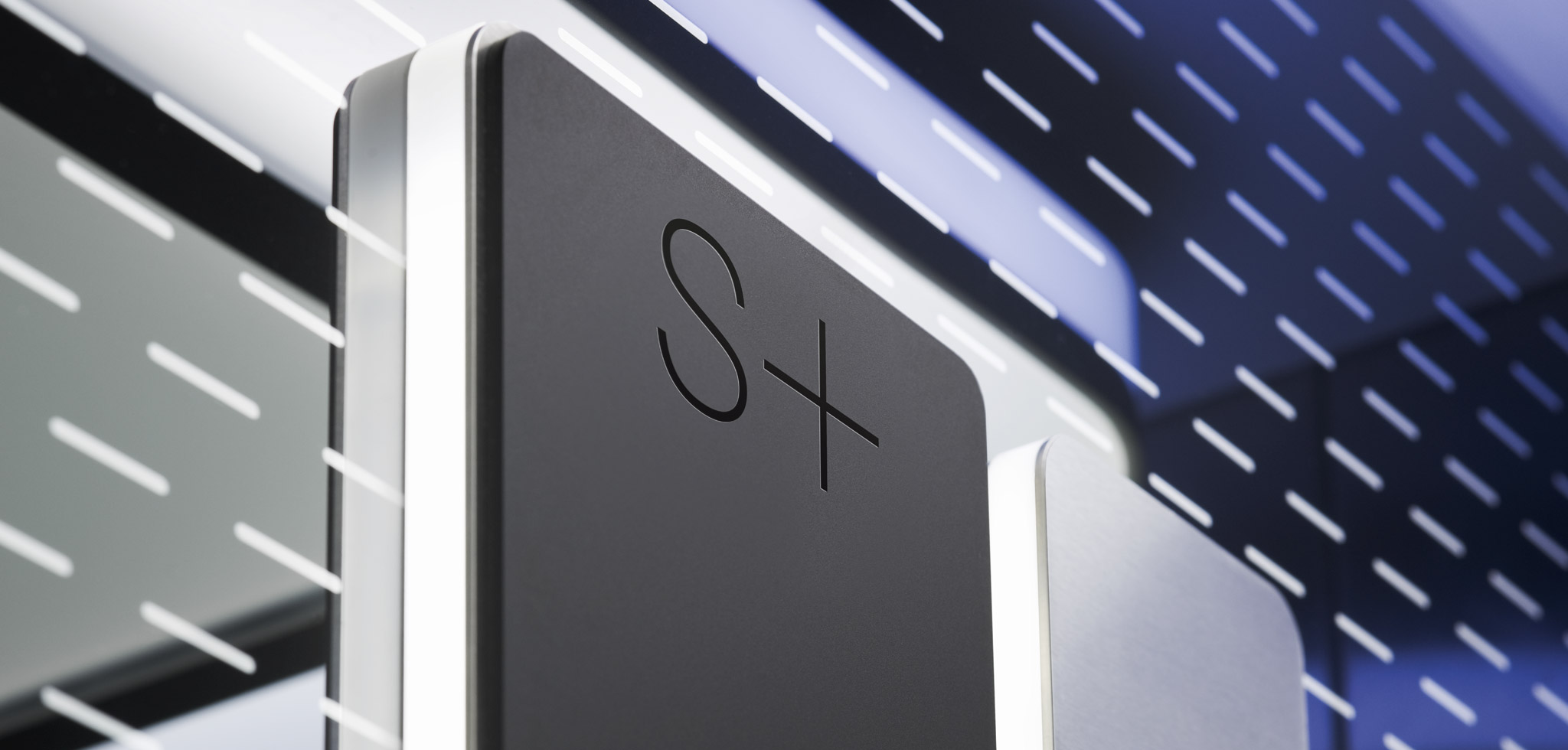

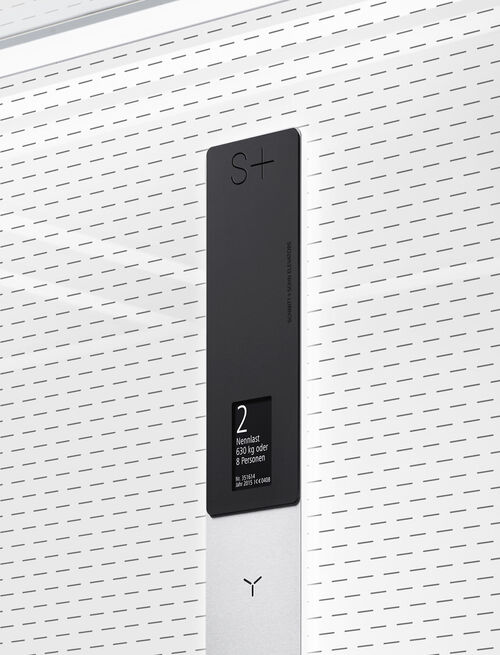

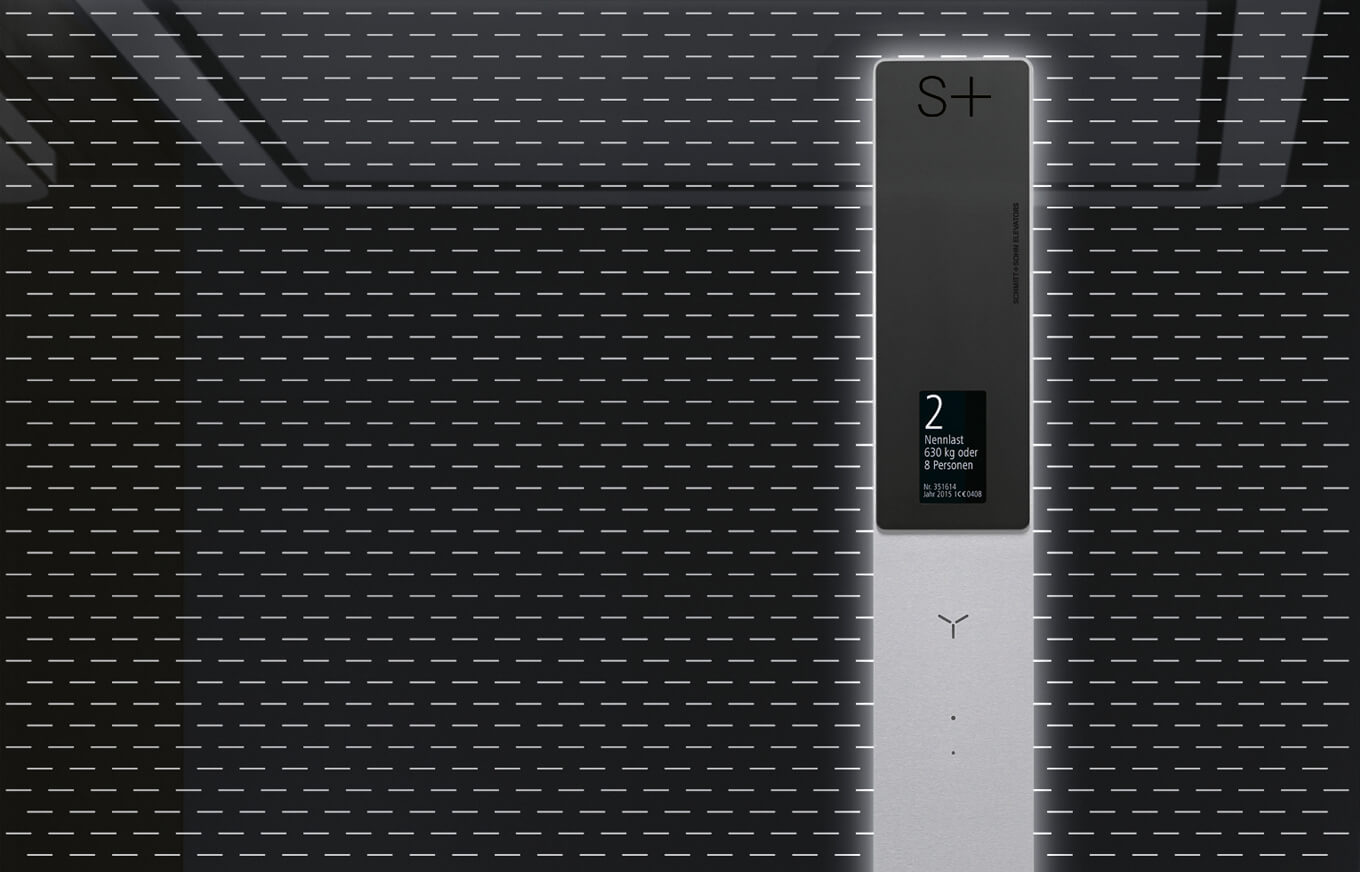

BT-I-TFT-LED control panel
BT-I-TFT-LED control panel

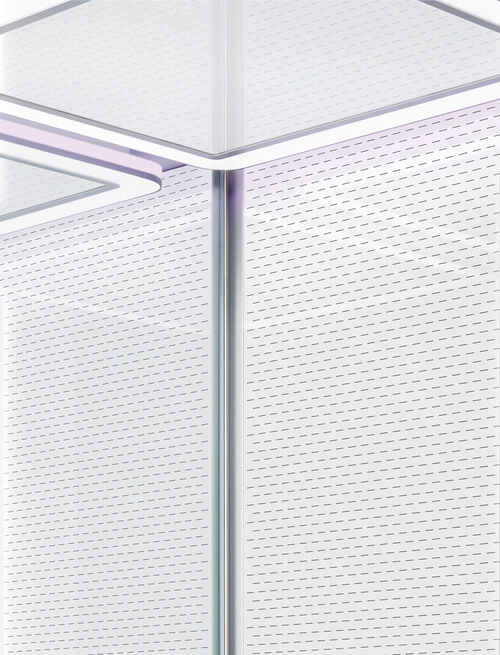

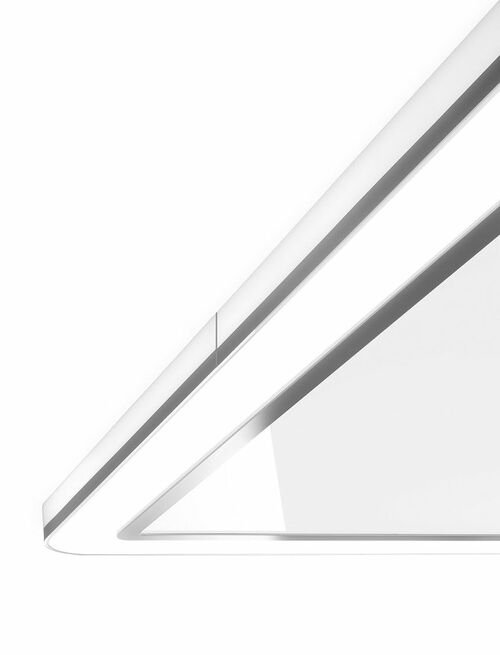

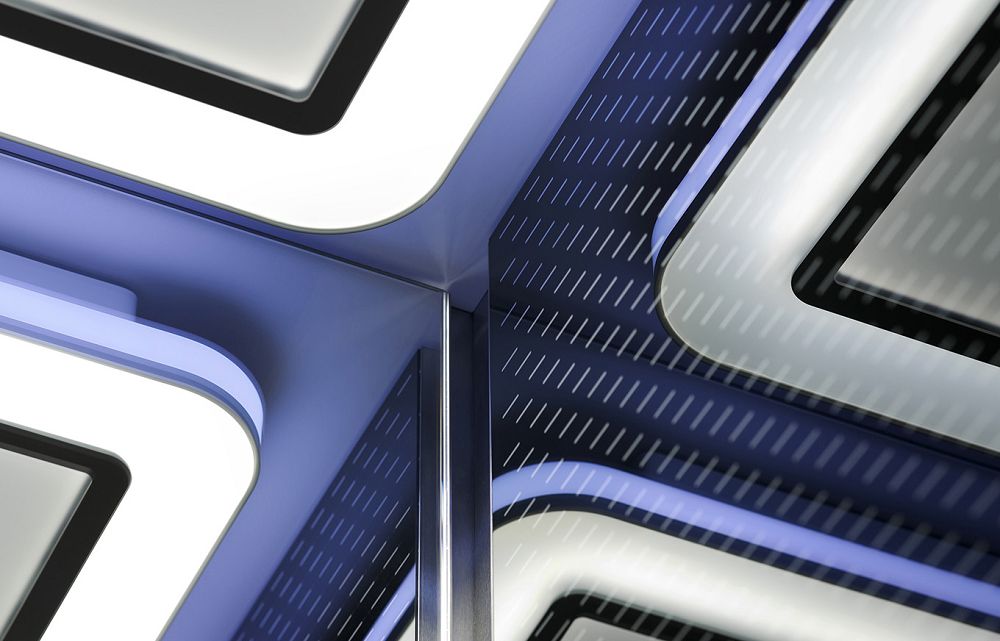

LD5X-LED illuminated ceiling
LD5X-LED illuminated ceiling

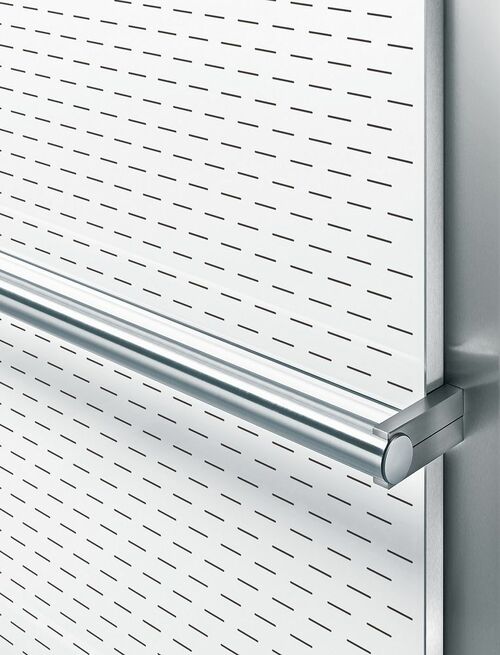

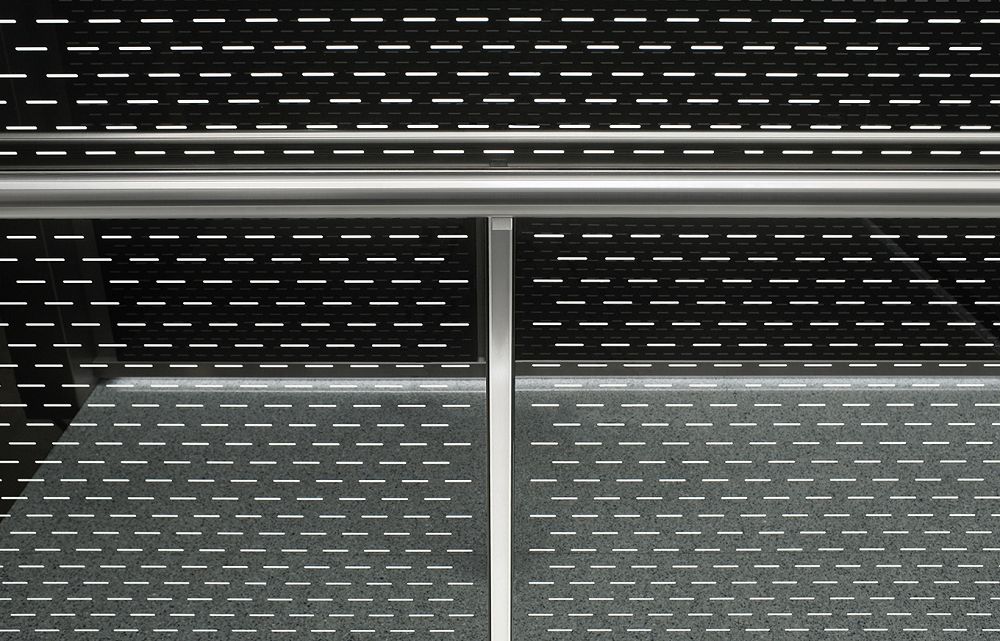

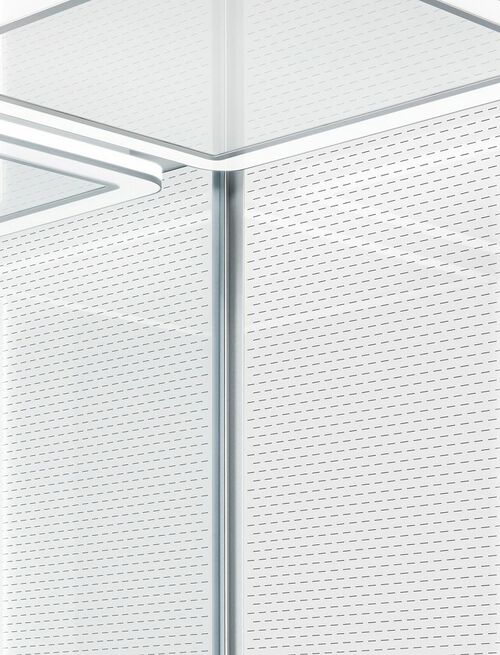

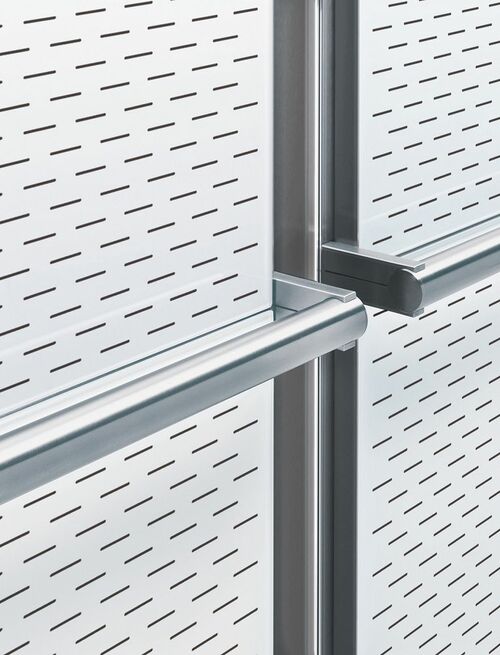

CG-X detail HL
HL hand rail, one side, stainless steel fine

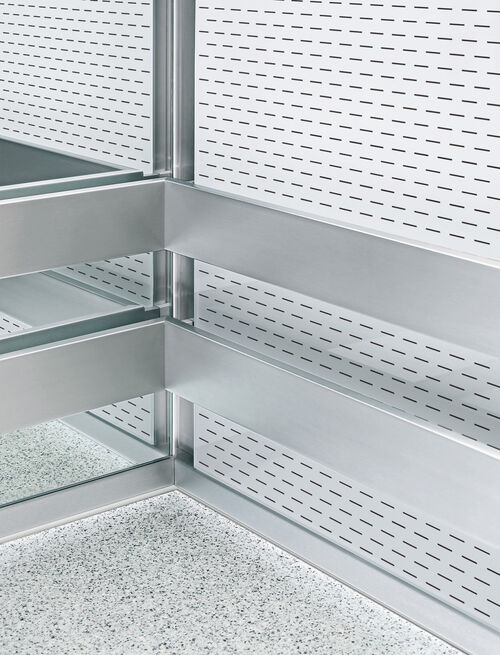

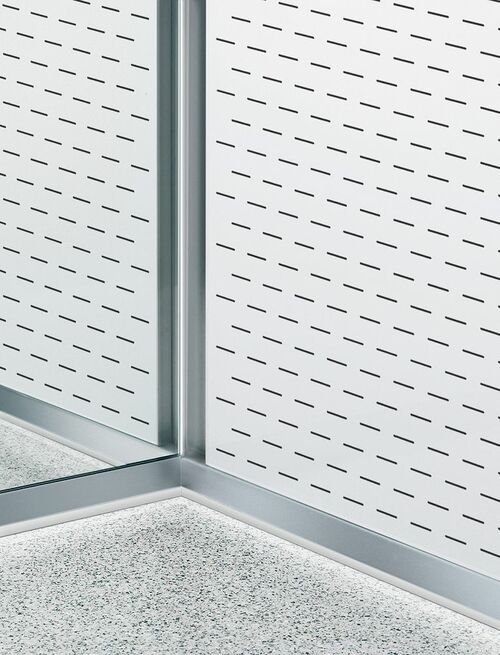

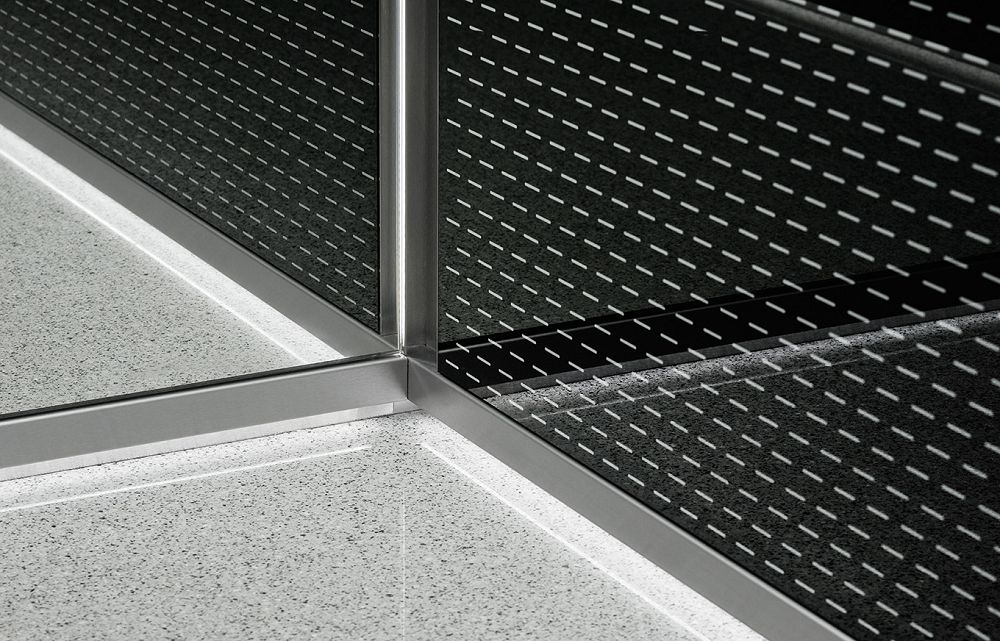

CG-X detail plinth

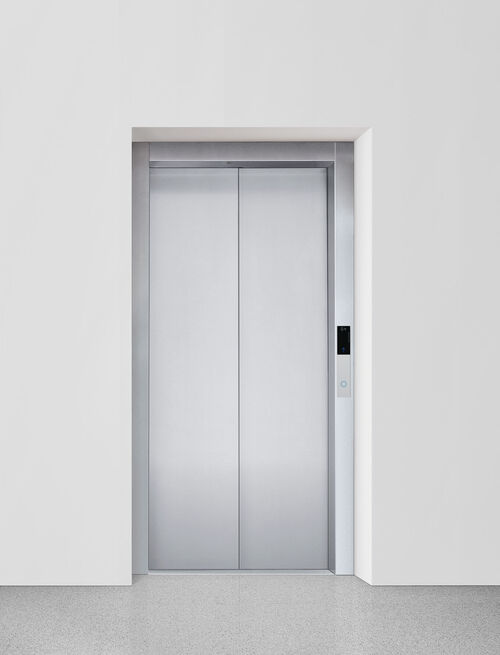

CG doors portal T1 doors closed

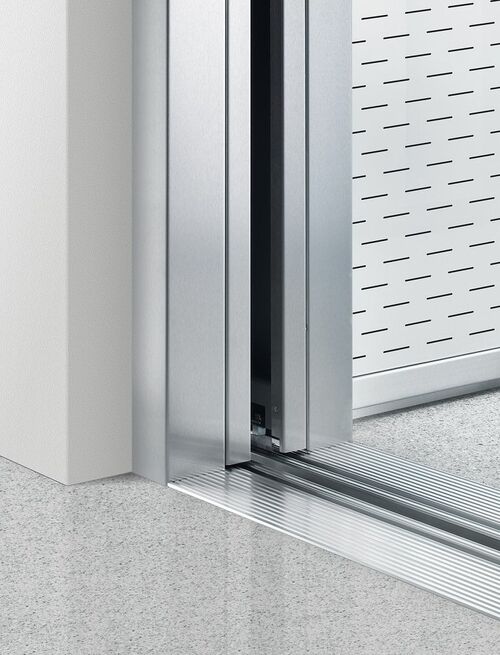

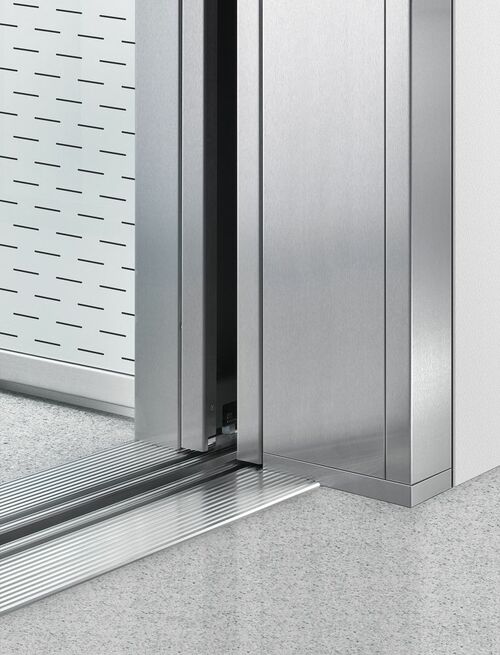

Cabin and shaft door with wall connection T1 and service frame, door step detail
cabin and landing door with brickwork attachment and service frame, threshold detail

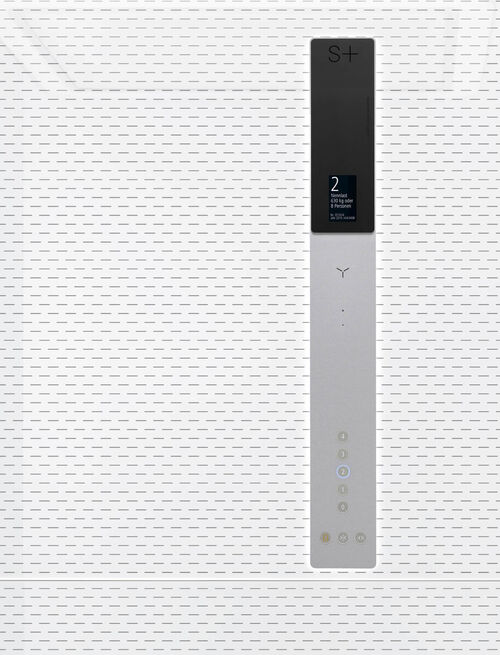

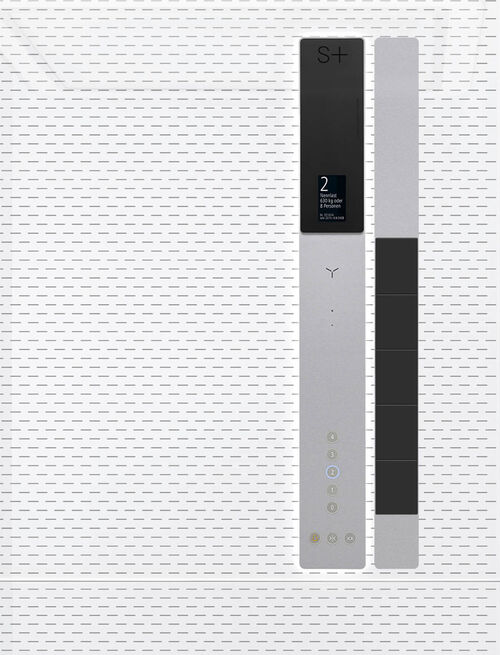

BT-TP-CG-1 control panel

Accessories - for individual requirements

BT-I-EN81-70-G control panel

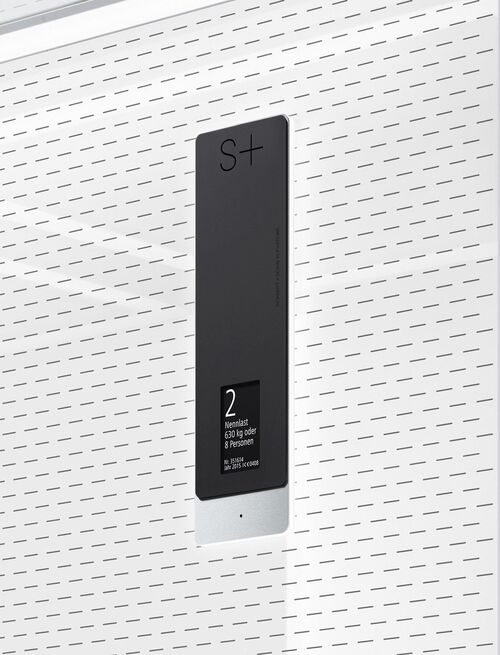

AT-I-TFT-LED display panel

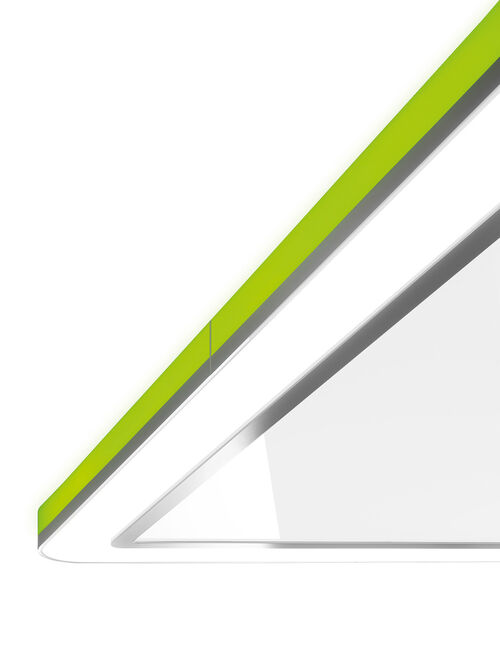

LD5X-LED-RGB illuminated ceiling
LD5X-LED-RGB illuminated ceiling
baggage protective strip square profile 100 stainless steel fine ground, full

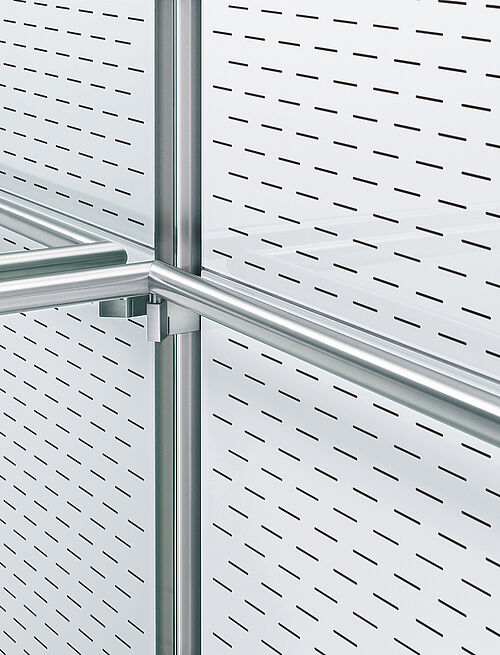

CG-X detail hand rail corner white

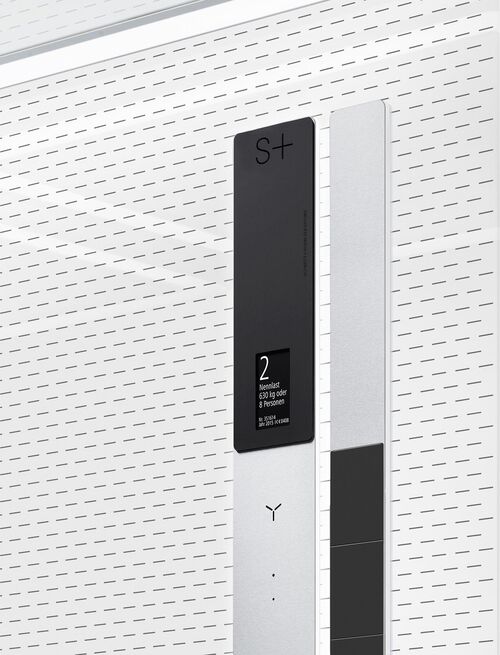

TNS2-LED tableau name plates
TNS2-LED panel name plates

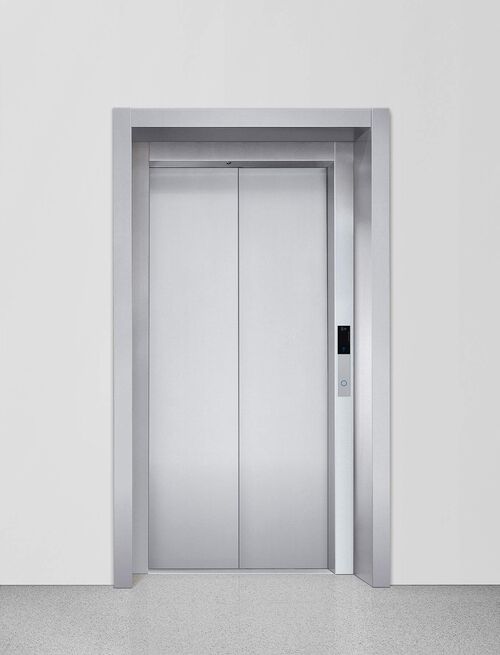

Shaft door with wall connection T1 and wall surround M1

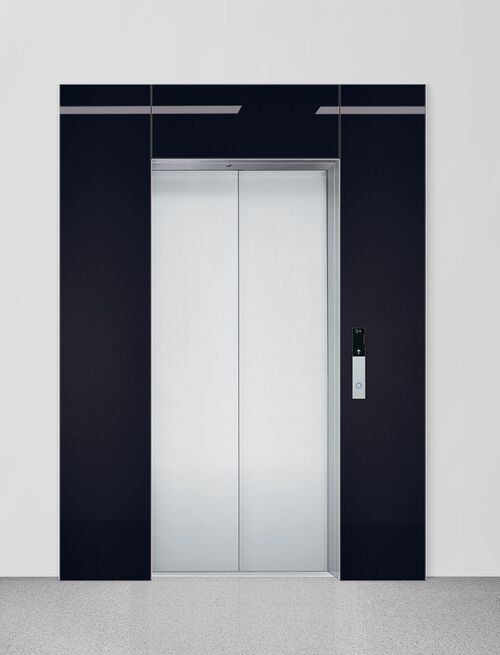

CG-X doors portal P-CG black

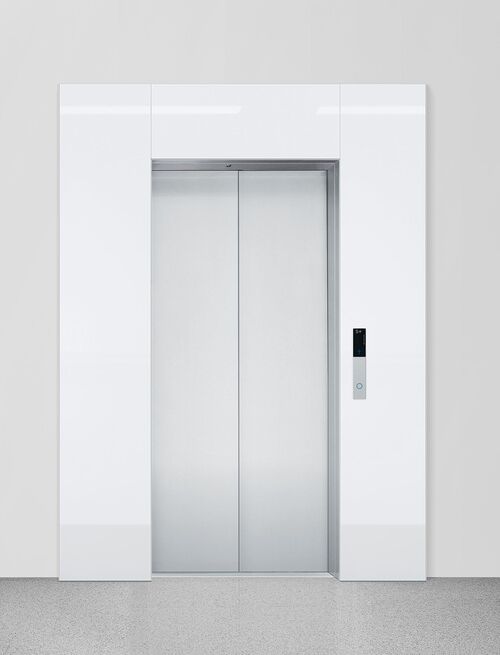

CG-X doors portal P-CG white

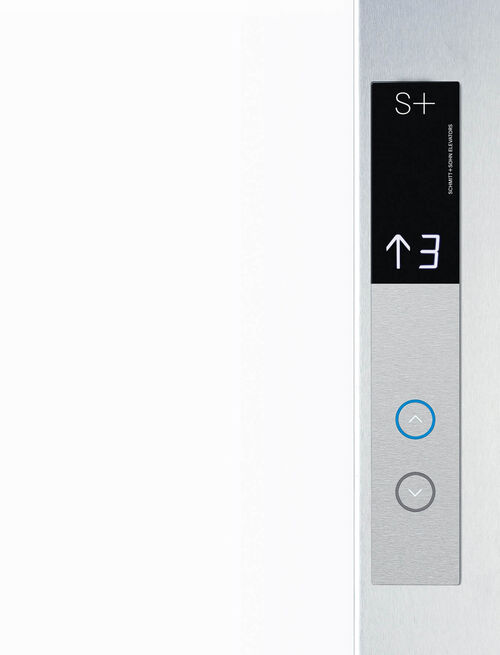

BT-TP-CG-2 Control panel Two-button and group control

Product specification

show complete product specifications

CG-X The Color Glass® Elevator - product specification.



Detail
Description
Standard
Accessories
Side walls
CG-X Color Glas®, ESG, rückseitig vollflächig und deckend beschichtet.Version CG-X Brillantweiß, Liniengrafik Tiefschwarz.Version CG-X Tiefschwarz, Liniengrafik Brillantweiß.Glaskanten geschliffen und poliert, Glaseinfassung Edelstahl Feinschliff,Lisene Edelstahl Feinschliff. Pflegeleichte Oberflächen, großzügige Raumwirkun
 Standard

Rear wall mirror
Spiegel S6, Glas mit Splitterschutzfolie, Rückwand, ungeteilt, hell, Spiegelkanten geschliffen und poliert, vertikal LED Neutralweiß hinterleuchtet. Spiegeleinfassungen Edelstahl Feinschliff
 Standard

Car corners
Edelstahl Feinschliff
 Standard

Lighting
LD5X-LED Lichtdecke, direkte, indirekte und blendfreie LED Beleuchtung,Leuchtrahmen VSG, semitransparent, LED Neutralweiß beleuchtet, seitlich Acryl Glas Weiß, hochglänzend, semitransparent, Mittelfläche VSG, semitransparent, LED beleuchtet, Leuchtmittel.
 Standard


LD5X-LED-RGB Lichtdecke mit RGB Farb- und Lichtsteuerung.

 Accessories
Hand rail
Edelstahl Feinschliff, behindertengerecht nach DIN EN 81-70:2005-09, Seitenwand, kabinentief, ø 33,70 mm, Handlaufhalter und Handlaufauflager Edelstahl Vollmaterial, Handlaufendstücke Edelstahl verschweißt.
 Standard


Zweiter Handlauf gegenüberliegend, Bedientableauseite.

 Accessories

Umlaufender Handlauf, Ecken auf Gehrung, verschweißt.

 Accessories
Ceiling
Painted RAL 9016 traffic white. Concealed, generously dimensioned cab ventilation at cabin depth in both side walls.
 Standard

Floor
Granite 90, light grey.
 Standard


Lowered cab floor for installed floor covering.

 Accessories
Plinth
Edelstahl Feinschliff. Verdeckte, großzügig bemessene Kabinenbelüftung.LED Neutralweiß hinterleuchtet.
 Standard

Protective strips
Gepäckschutzleisten, Edelstahl Feinschliff, 100 x 20 mm.

 Accessories
Car control panel
BT-I-TFT-LED-XS, Edelstahl Feinschliff, Schliffrichtung horizontal, Anordnung behindertengerecht nach DIN EN 81-70:2005-09, unsichtbar befestigt. Informationstableau Acryl Glas Tiefschwarz, seidenmatt, Signet Intarsie Acryl Glas Tiefschwarz, hochglänzend, Schriftmarke Gravur, Leuchtrahmen Acryl Glas Weiß, semitransparent, satiniert, LED Neutralweiß. Display TFT hochauflösend, Kurzhubtaster flächenbündig, rund, Tastfläche Edelstahl, Rufquittung LED Blau, Symbole Kunststoff Lichtgrau.
 Standard


Stainless steel with finishing grinding, suitable for the handicapped to DIN EN 81-70:2005-09 Appendix G, horizontal, concealed attachment. Separate information panel. Large, raised buttons, round, button surface stainless steel, call acceptance blue LED, symbols raised, tactile, plastic, light grey.

 Accessories
Nameplate panel
Edelstahl Feinschliff, unsichtbar befestigt. Namensschilder Acryl Glas Schwarz, Text Gravur, Lackierung, einzeln auswechselbar. Rahmen Acryl Glas Weiß, satinie

 Accessories
Car portal
Stainless steel with finishing grinding.
 Standard

Car door
Edelstahl Feinschliff, zweiteilig, zentral öffnend, Türhöhe 2.100 mm.
 Standard


Edelstahl Feinschliff, zweiteilig, einseitig öffnend, Türhöhe 2.100 mm.

 Accessories
Door drive
Energy-saving regulated drive with intelligent travel measurement.
 Standard

Door monitoring
2-D safety light grid over full door height (no light barrier!).
 Standard


3-D safety light grid with vestibule monitoring.

 Accessories
Shaft doors
Grundiert, zweiteilig, zentral öffnend, Höhe wie Kabinentür.
 Standard


Grundiert, zweiteilig, einseitig öffnend, Höhe wie Kabinentür.

 Accessories

Edelstahl Feinschliff, Edelstahl Leinen.

 Accessories

Wall bezel settings M1, primed, stainless steel with finishing grinding, stainless steel, linen.

 Accessories

Portale P1, grundiert, Edelstahl Feinschliff, Edelstahl Leinen, Color Glas.

 Accessories

Portale P1, grundiert, ESG, Glaskanten geschliffen und poliert, Glaseinfassung Edelstahl Feinschliff, Color Glas® Brillantweiß oder Tiefschwarz.

 Accessories
Shaft doors control panel
Edelstahl Feinschliff, Schliffrichtung horizontal, Anordnung im Türrahmen, unsichtbar befestigt.Informationstableau Acryl Glas Tiefschwarz, Sockelrahmen Acryl Glas Weiß, Anzeige LED Weiß. Kurzhubtaster flächenbündig, rund, Tastfläche Edelstahl, Rufquittung LED Blau, Symbole Kunststoff Lichtgrau.
 Standard


Anordnung im Mauerwerk, leichtere Erreichbarkeit in Anlehnung an die DIN EN 81-70:2005-09, Bedientableau geschraubt.

 Accessories

Großflächentaster, behindertengerecht nach EN 81-70:2005-09, Anhang G, Tableaubreite 80 mm.

 Accessories
Shaft doors
Grundiert, zweiteilig, zentral öffnend, Höhe wie Kabinentür.
 Standard


Grundiert, zweiteilig, einseitig öffnend, Höhe wie Kabinentür.

 Accessories

Edelstahl Feinschliff, Edelstahl Leinen.

 Accessories

Wall bezel settings M1, primed, stainless steel with finishing grinding, stainless steel, linen.

 Accessories

Portale P1, grundiert, Edelstahl Feinschliff, Edelstahl Leinen, Color Glas.

 Accessories

Portale P1, grundiert, ESG, Glaskanten geschliffen und poliert, Glaseinfassung Edelstahl Feinschliff, Color Glas® Brillantweiß oder Tiefschwarz.

 Accessories
Shaft doors control panel
Edelstahl Feinschliff, Schliffrichtung horizontal, Anordnung im Türrahmen, unsichtbar befestigt.Informationstableau Acryl Glas Tiefschwarz, Sockelrahmen Acryl Glas Weiß, Anzeige LED Weiß. Kurzhubtaster flächenbündig, rund, Tastfläche Edelstahl, Rufquittung LED Blau, Symbole Kunststoff Lichtgrau.
 Standard


Anordnung im Mauerwerk, leichtere Erreichbarkeit in Anlehnung an die DIN EN 81-70:2005-09, Bedientableau geschraubt.

 Accessories

Großflächentaster, behindertengerecht nach EN 81-70:2005-09, Anhang G, Tableaubreite 80 mm.

 Accessories
Control unit
Eintastersammelsteuerung in modernster Bustechnologie. Schnelle Orientierung und Vermeidung von Fehlfahrten für kurze Wartezeiten und hohe Förderleistung. Servicezarge in der untersten Haltestelle, grundiert. Überlastkontrolle. Frequenzregelung für lastunabhängige Fahrkurven und Bündighalt. Batteriegepufferte, lastabhängige Notbefreiung in die nächste Haltestelle.
 Standard


Auxiliary power and evacuation functions. Access control systems. Penthouse control. Priority travel with key-operated switch. Floor announcement. Direction of travel indicators and acoustic signals in accordance with DIN EN 81-70:2005-09. Interfaces to building management system.

 Accessories

Servicezarge Edelstahl Feinschliff.

 Accessories

Servicezarge in beliebiger Haltestelle oder Servicepaneel in benachbarten Räumen.

 Accessories

Zweitastersammelsteuerung, Gruppensammelsteuerung.

 Accessories
Remote emergency call
Digital emergency call and diagnosis system to EN 81-28 for emergency call transmission to the continually-manned Schmitt + Sohn Service Centre. Electronic misuse suppression.
 Standard


Video misuse detection for the digital remote alarm and diagnosis system.

 Accessories

Remote monitoring of lift attendant functions, transmission of diagnosis data, GSM module.

 Accessories
Drive
Gearless cable drive in the shaft. High efficiency and low power consumption. Speed 1.0 and 1.6 m/sec. Travel height up to 40m.
 Standard

Load carriers
Spezial Aufzugstragseile, hohe Laufruhe, wartungsfrei. Keine elektronische Überwachung erforderlich.
 Standard
